Upright Pass-Through 4 Sided Glass Drink And Food Refrigerated Display Case

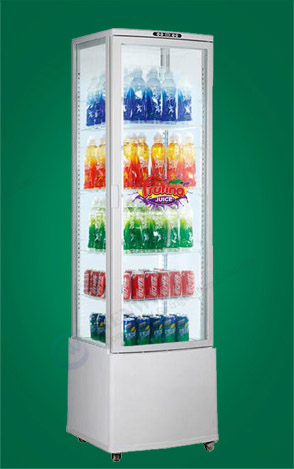

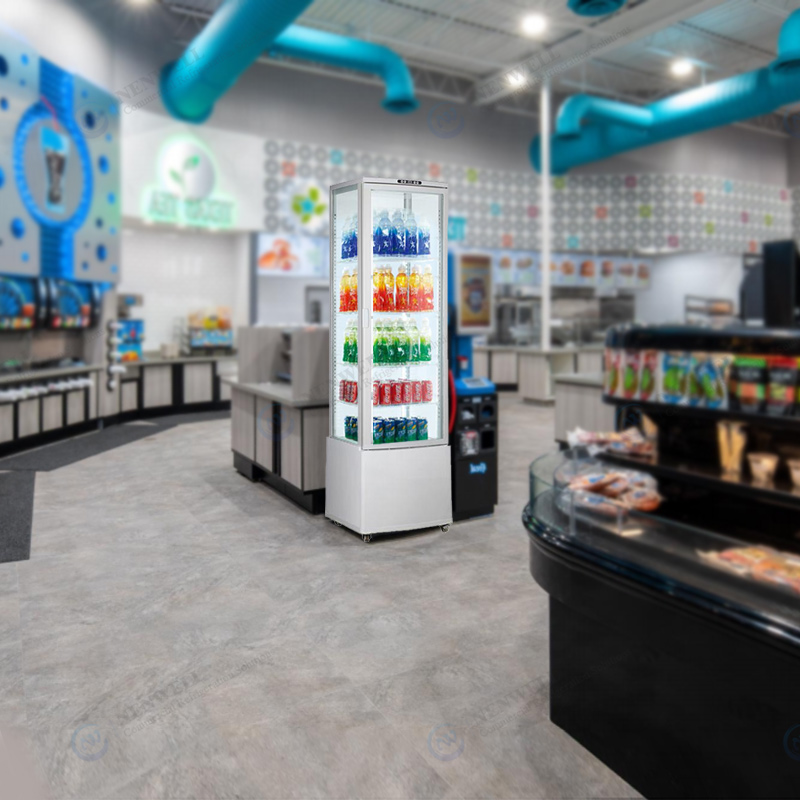

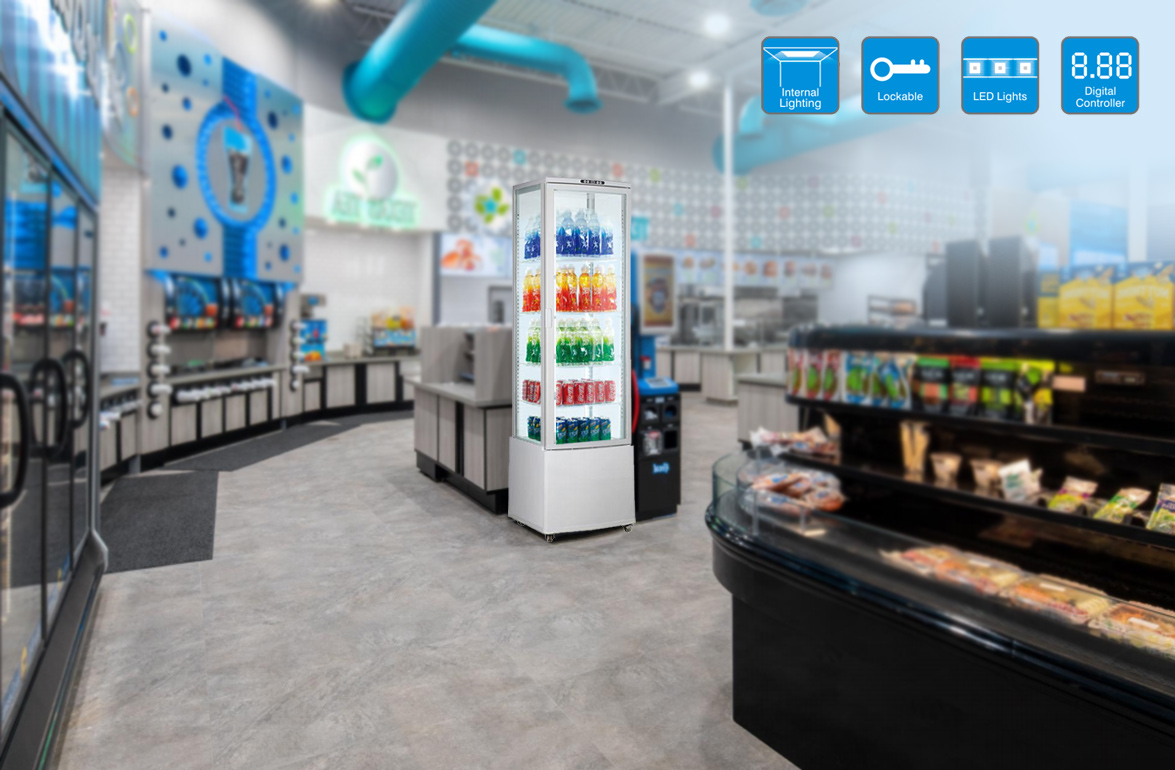

NW-RT235L upright pass-through refrigerated display case with four sided glass is a great solution for convenience stores and stack bar to display soft drinks and foods. It’s a space-saving solution for some businesses with limited floor space, such as convenience stores, snack bars, cafes, bakeries, and so on. This display case has glass panels on 4 sides, so It’s ideal to be placed in the front of the store to easily draw customer’s attention from all 4 sides, and boost impulse buying particularly when the delicious refreshments tempt customers who are hungry.

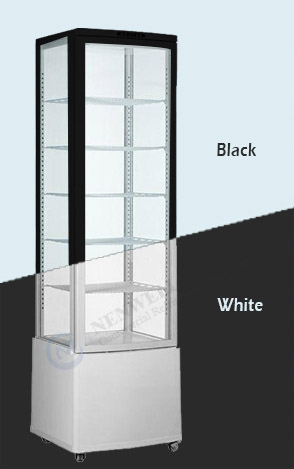

Color Options & Custom-Branding

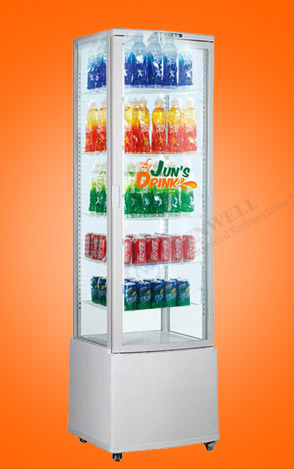

This model has white and black as standard colors, and some special colors are also available according to customers’ requirements. Furthermore, we can customize the unit with your logo and branding graphics for improvement, that can help improve your brand awareness, and provides an appealing appearance to attract the eyes of your customers to increase their impulse buying.
Details

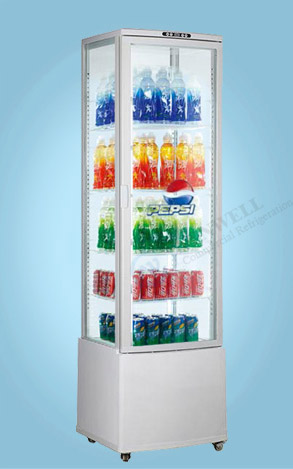

Attractive Display
The 4 sided crystal-clear glass design allows customers to easily notice the items at all angles. In addition to be used as a refrigerated cabinet, it’s also an ideal solution for bakeries, convenience stores, and eateries to showcase their beverage and pastry to their customers.
Ventilated Cooling System

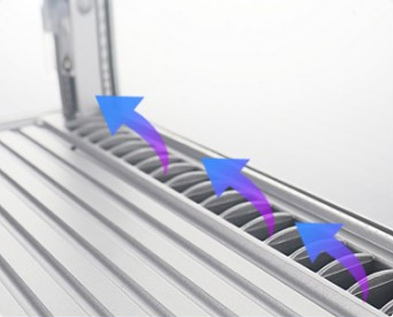

There is an inbuilt fan to force the cold air from the evaporating unit to move and distribute evenly around the storage compartments. With a ventilated cooling system, the foods and drinks can be fastly cooled down, so it’s suitable for to be used for frequently restocking.
Easy To Control

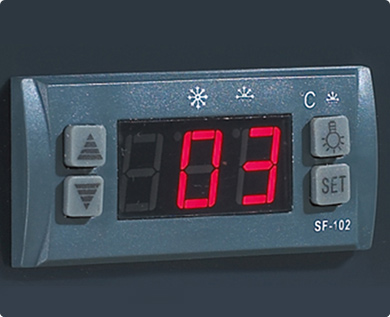

This refrigerated display case comes with a user-friendly digital control panel to help easily control the temperature in a range between 32°F and 53.6°F (0°C and 12°C), and the temperature level precisely displays on a digital screen to allow you to monitor the interior storage condition.

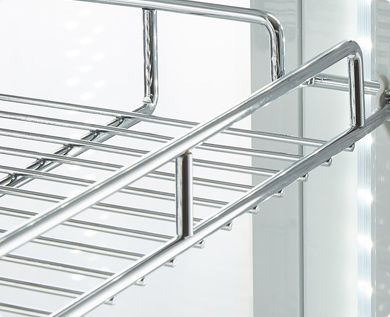

Adjustable Wire Shelves

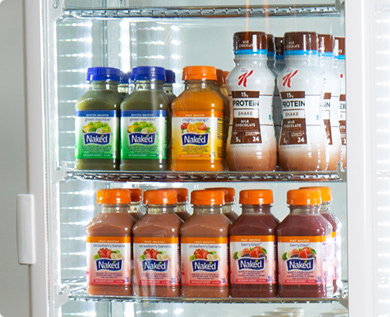

This unit has 3 pieces of wire shelves to help separate and organize different types of items, from pastries to canned soda or beer, excellent for cafes, bakeries, and convenience stores. These shelves are made of durable metal wires that can withstand the weight up to 44lb.

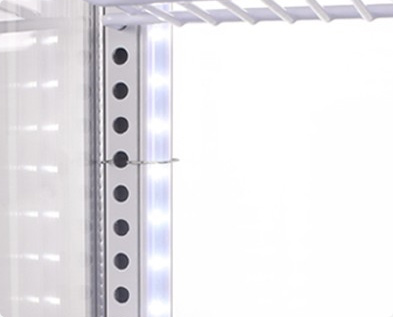

Lighting With High Brightness
This refrigerated display case comes with top lighting inside, and additional fancy LED lighting is optional to be installed on the corners, with the gorgeous lighting to illuminate and enhance, your stored items would be more highlighted to attract the attention of your customers.
Glass Condensation Removal

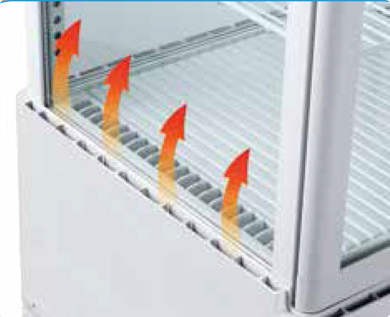

The exhaust outlets are located nearby the glass panels on four sides, the exhausted warm air from here can remove the condensing water on the glass. this feature allows customers to browse the refrigerated items with a super clear visibility.
Dimensions & Specifications
| Model | NW-LT215L-3 |
| Capacity | 215L |
| Temperature | 32-53.6°F (0-12°C) |
| Input Power | 290/380/400W |
| Refrigerant | R134a/R600a/R290 |
| Class Mate | 4 |
| Color | White/Black/Silver |
| N. Weight | 73.5kg (162lbs) |
| G. Weight | 78kg (172lbs) |
| Exterior Dimension | 556x526x1613mm 21.9x20.7x63.5inch |
| Package Dimension | 615x575x1640mm 24.2x22.6x64.6inch |
| 20" GP | 36 sets |
| 40" GP | 76 sets |
| 40" HQ | 76 sets |
| Model | NW-LT235L-3 |
| Capacity | 235L |
| Temperature | 32-53.6°F (0-12°C) |
| Input Power | 290/380/400W |
| Refrigerant | R134a/R600a/R290 |
| Class Mate | 4 |
| Color | White/Black/Silver |
| N. Weight | 76.5kg (168.7lbs) |
| G. Weight | 81kg (178.6lbs) |
| Exterior Dimension | 556x526x1713mm 21.9x20.7x67.4inch |
| Package Dimension | 615x575x1740mm 24.2x22.6x68.5inch |
| 20" GP | 36 sets |
| 40" GP | 76 sets |
| 40" HQ | 76 sets |
| Model | NW-LT280L-3 |
| Capacity | 280L |
| Temperature | 32-53.6°F (0-12°C) |
| Input Power | 290/380/400W |
| Refrigerant | R134a/R600a/R290 |
| Class Mate | 4 |
| Color | White/Black/Silver |
| N. Weight | 89.5kg (197.3lbs) |
| G. Weight | 95kg (209.4lbs) |
| Exterior Dimension | 556x526x1913mm 21.9x20.7x75.3inch |
| Package Dimension | 615x575x1940mm 24.2x22.6x76.4inch |
| 20" GP | 36 sets |
| 40" GP | 76 sets |
| 40" HQ | 76 sets |
-
