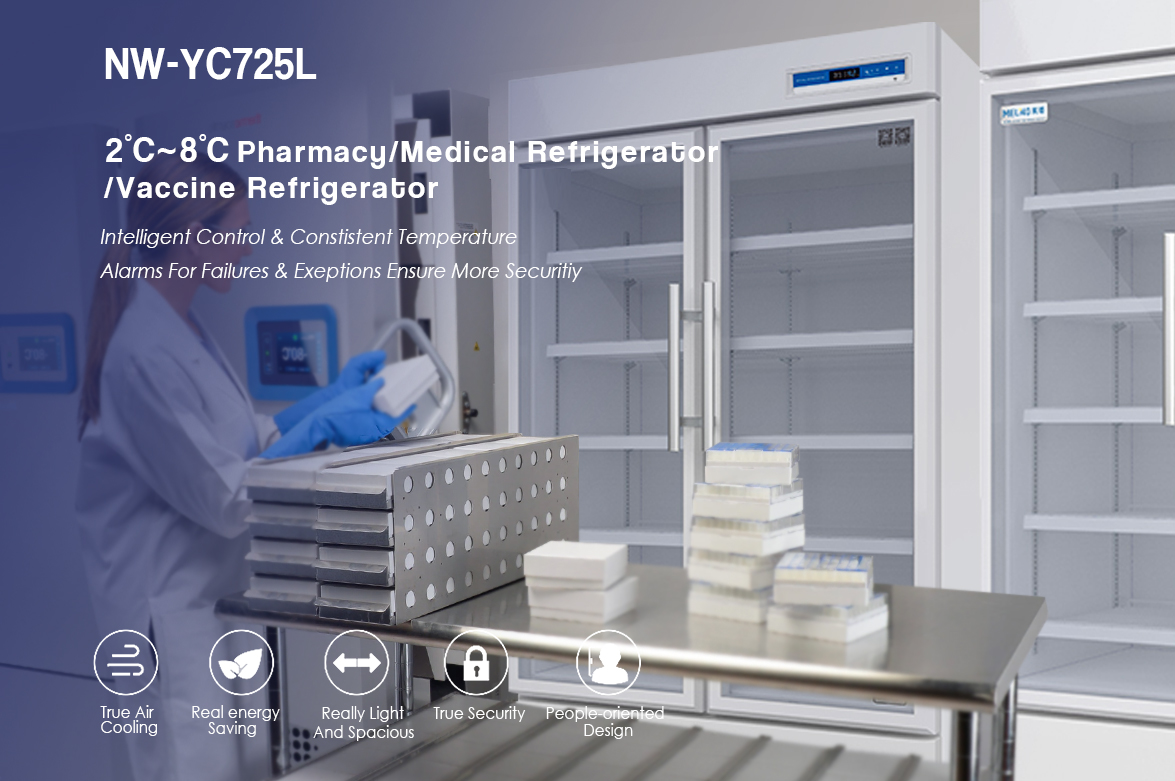

NW-YC725L is a double door type of vaccine and medicine fridge that offers a professional and stunning appearance and has a storage capacity of 725L, it’s an upright refrigerator that is also suitable for laboratory refrigeration, works with an intelligent temperature controller, and provides consistent temperatures in a range of 2℃ and 8℃. The transparent front door is made of double-layer tempered glass, which is durable enough to prevent a collision, not only that, it also has an electric heating device to help eliminate condensation, and keep the stored items displayed with clear visibility. This pharmacy fridge comes with an alarm system for failure and exception occurrences, greatly protect your stored materials from spoilage. The air-cooling design of this fridge ensures no worry about frosting. With these beneficiary features, it’s a perfect refrigeration solution for hospitals, pharmaceuticals, laboratories, and researching sections to store their medicines, vaccines, specimens, and some special materials with temperature-sensitive.
This medicine fridge has a clear transparent door, which is made of double-layer Low-E tempered glass and has great thermal insulation, the storage items inside can be clearly displayed, the glass features an electric heating device for anti-condensation. There is a column-shaped handle on the door frame for pulling the door open. The exterior of this fridge is made of premium stainless steel, and the interior material is HIPS, which is durable and easily cleanable.

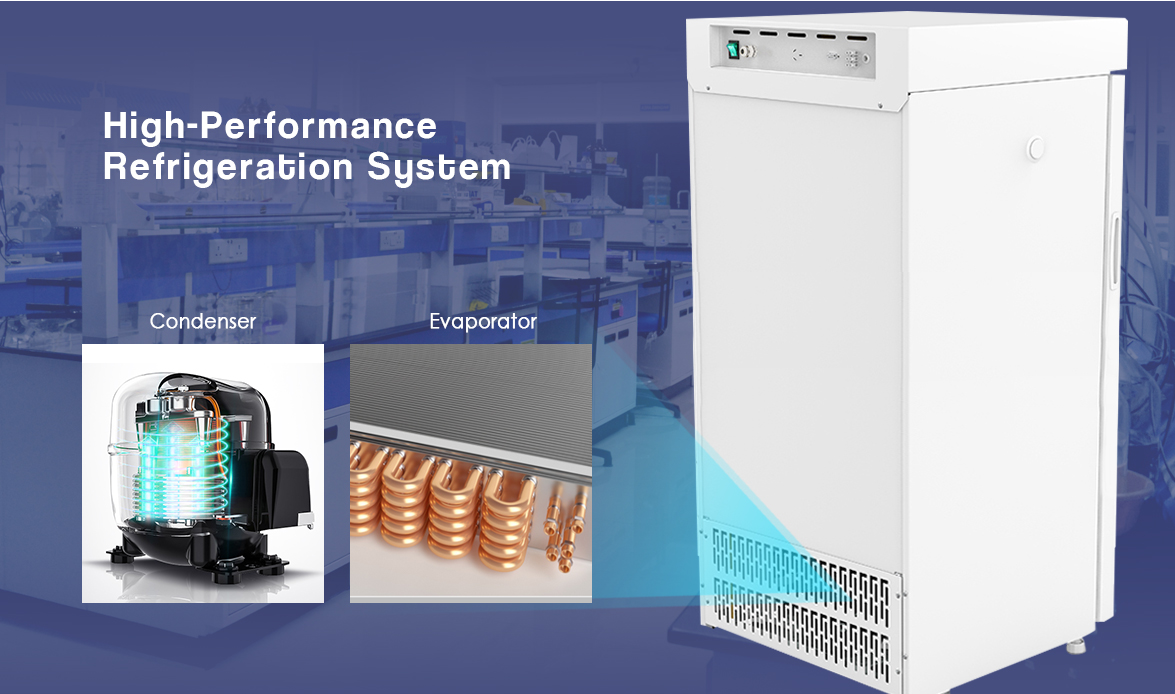

This vaccine fridge works with a premium compressor and a condenser, which have features of high refrigeration performance and well keeps the temperature consistency within 0.1℃ in tolerance. Its air-cooling system has an auto-defrost feature. The HCFC-Free refrigerant is an environmentally friendly type and provides more refrigeration efficiency and energy saving.

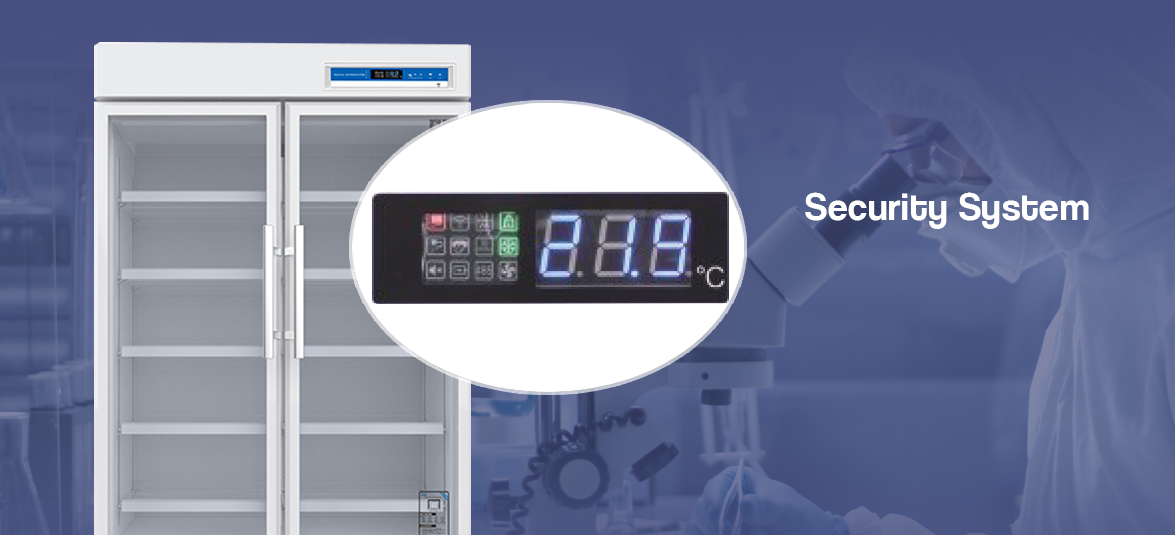

This medicine fridge has a temperature control system with a high-precision micro-computer and a stunning digital display screen with a display precision of 0.1℃, and it comes with an access port and RS485 interface for the monitor system. A built-in USB interface is available for storing the last month's data, the data will be transferred and stored automatically once your U-disk is plugged into the interface. A printer is optional. (data can be stored for more than 10 years)

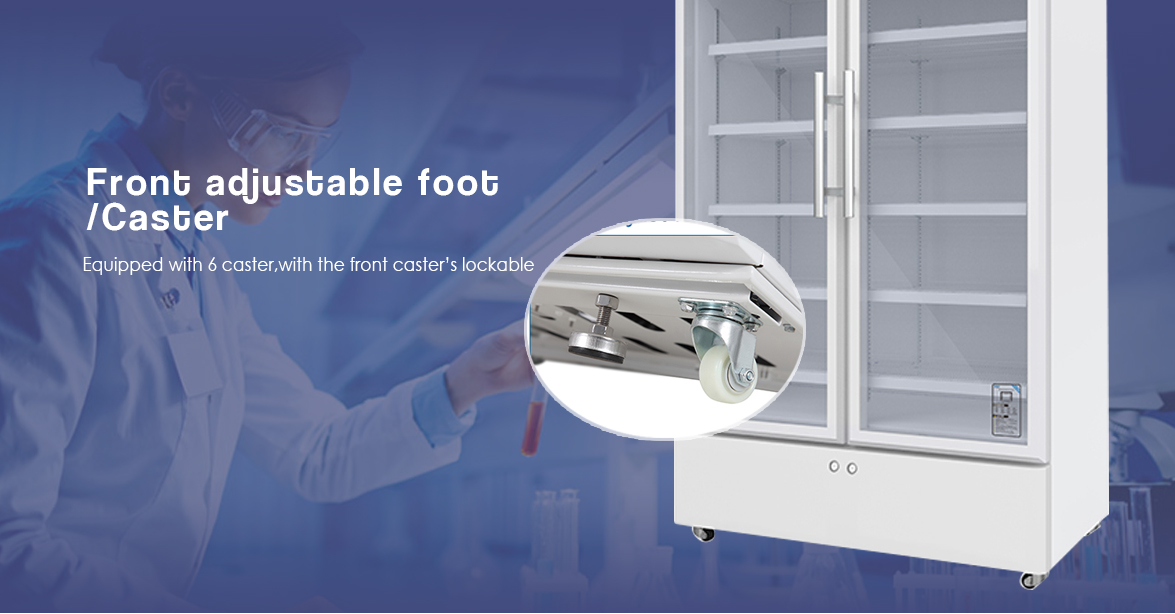

This medicine/vaccine fridge is equipped with 6 casters for easy movement, and each of the front casters has a break to be fastened.

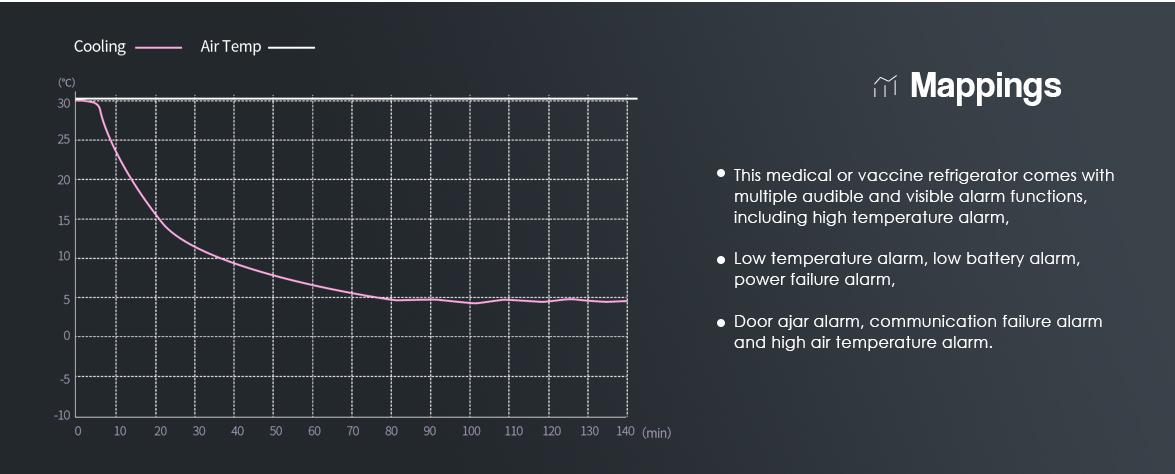

The security system has audible and visual alarm devices to warn you of some exceptions that temperature goes high or low abnormally, the sensor doesn’t work, the door has left open, and the power is off. This system also comes with a device to delay turn-on and prevent interval, which can ensure working reliability. The door of this vaccine fridge has a lock to prevent unwanted access.
This upright medicine and vaccine fridge is for the storage of medicines, vaccines, and also suitable for the storage of researching specimens, biological products, reagents, and more. Excellent solutions for pharmacies, pharmaceutical factories, hospitals, disease prevention & control centers, clinics, and so on.
Model | NW-YC725L |
Capacity(L) | 725 liter |
Internal Size(W*D*H)mm | 980*595*1260 |

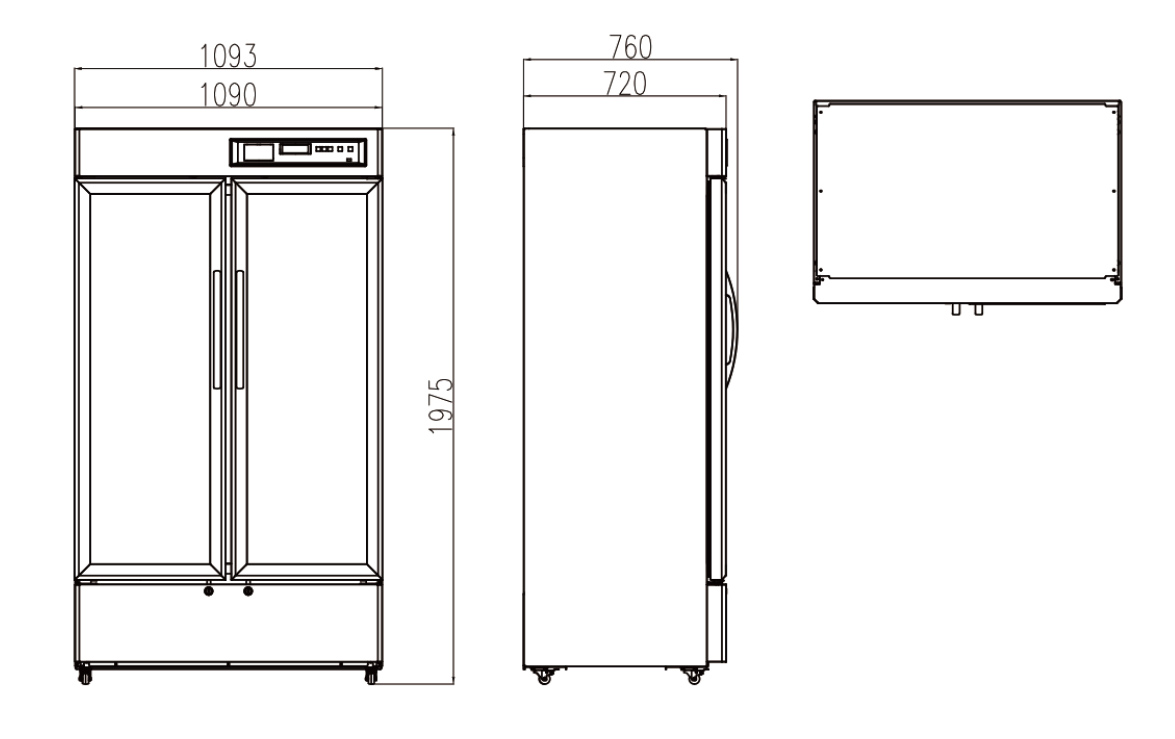

External Size(W*D*H)mm | 1093*758*1972 |
Package Size(W*D*H)mm | 1187*795*2136 |
NW/GW(Kgs) | 171/200 |
Performance | |
Temperature Range | 2~8℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | 5℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R290 |
Insulation Thickness(mm) | R/L:55,U:65,D:80,B:55 |
Construction | |
External Material | Powder coated material |
Inner Material | HIPS |
Shelves | 12(coated steel wired shelf) |
Door Lock with Key | Yes |
Lighting | LED |
Access Port | 1pc. Ø 25 mm |
Casters | 4+ (2 levelers feet) |
Data Logging/Interval/Recording Time | USB/Record every 10 minute / 2 years |
Door with Heater | Yes |
Standard Accessory | RS485,Remote alarm contact,Backup battery |
Alarm | |
Temperature | High/Low temperature,High ambient temperature, |
Electrical | Power failure , Low battery, |
System | Sensor error,Door ajar,Built-in datalogger USB Failure,Remote alarm |
Electrical | |
Power Supply(V/HZ) | 230±10%/50 |
Rated Current(A) | 3.38 |
Options Accessory | |
System | Printer,RS232 |
