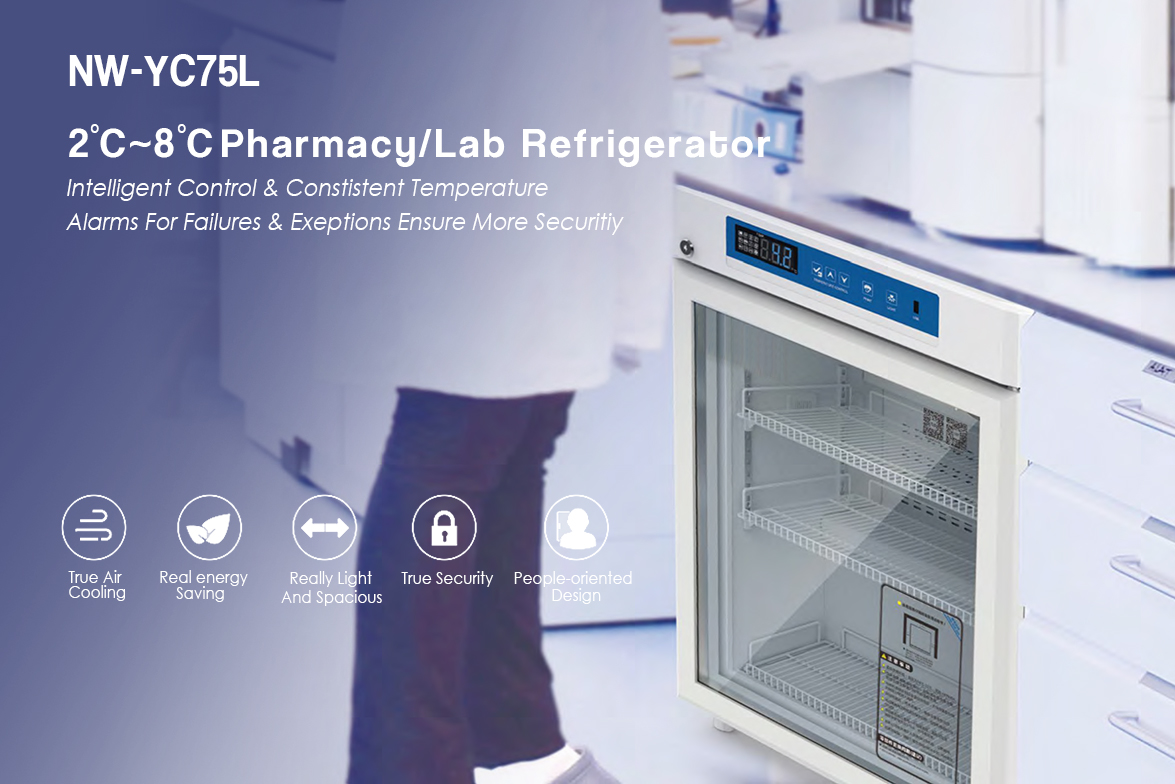

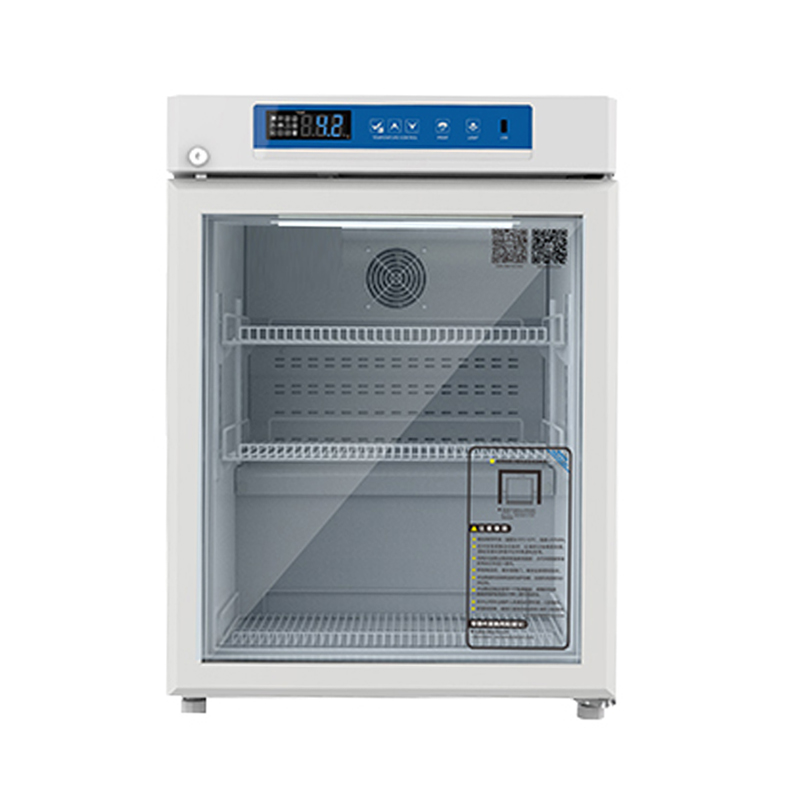

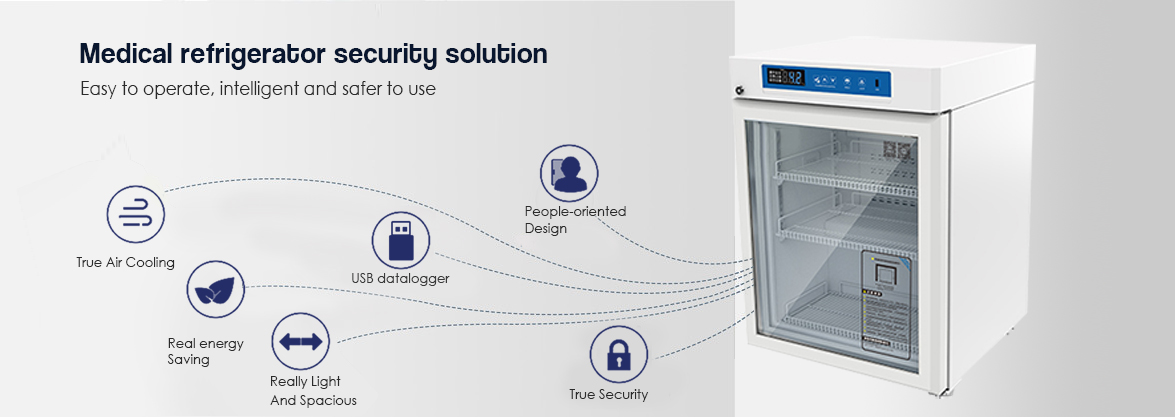

NW-YC75L is a medical and lab grade refrigerator that offers a professional and stunning appearance and has a storage capacity of 75L, it’s a small medical refrigerator that is suitable for undercounter placement, works with an intelligent temperature controller, and provides consistent temperatures in a range of 2℃ and 8℃. The transparent front door is made of double-layer tempered glass, which is durable enough to prevent a collision, not only that, it also has an electric heating device to help eliminate condensation, and keep the stored items displayed with clear visibility. This pharmacy fridge comes with an alarm system for failure and exception occurrences, greatly protect your stored materials from spoilage. The air-cooling design of this fridge ensures no worry about frosting. With these beneficiary features, it’s a perfect refrigeration solution for hospitals, pharmaceuticals, laboratories, and researching sections to store their medicines, vaccines, specimens, and some special materials with temperature-sensitive.

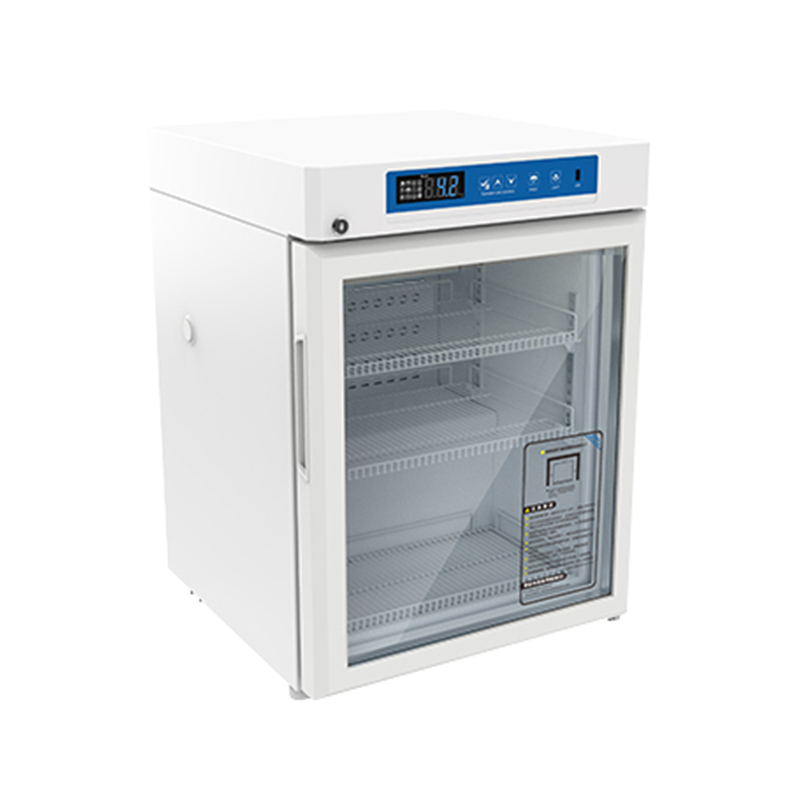

The clear glass door of this undercounter medical refrigerator is lockable and comes with a recessed handle, which provides a visible display to easily get accessed to the stored items. And the interior has a super bright lighting system, the light will be on while the door is opened, and will be off while the door is closed. The exterior of this fridge is made of premium stainless steel, and the interior material is HIPS, which is durable and easily cleanable.

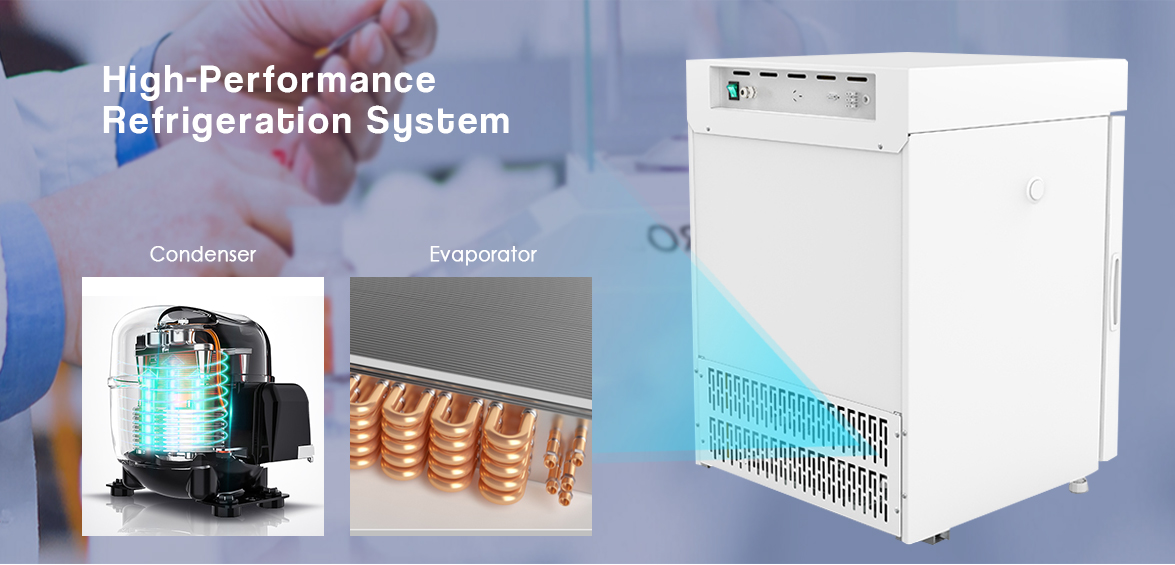

This small lab refrigerator works with a premium compressor and condenser, which have features of high refrigeration performance and well keeps the temperature consistency within 0.1℃ in tolerance. Its air-cooling system has an auto-defrost feature. The HCFC-Free refrigerant is an environmentally friendly type and provides more refrigeration efficiency and energy saving.

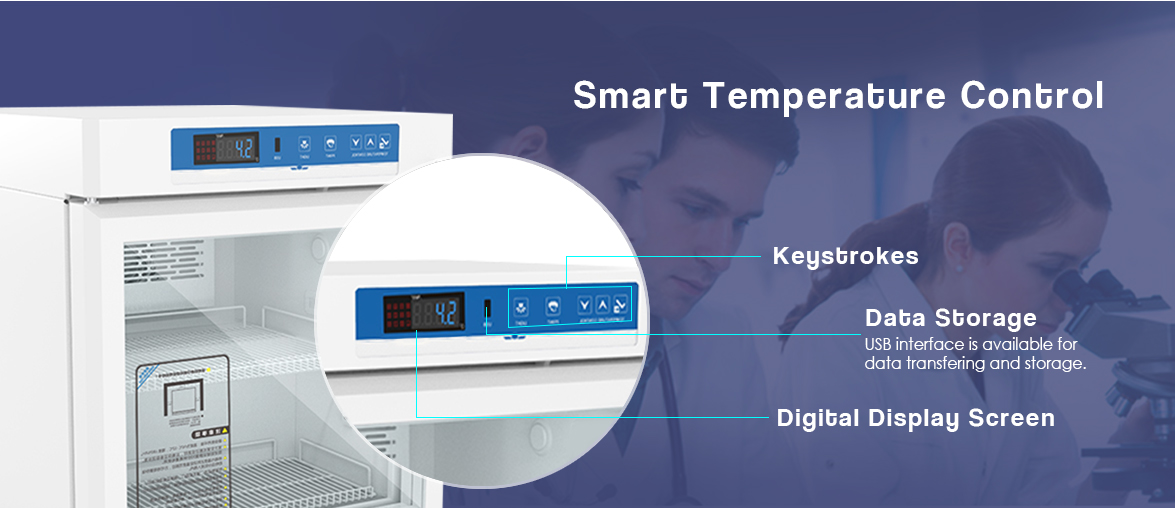

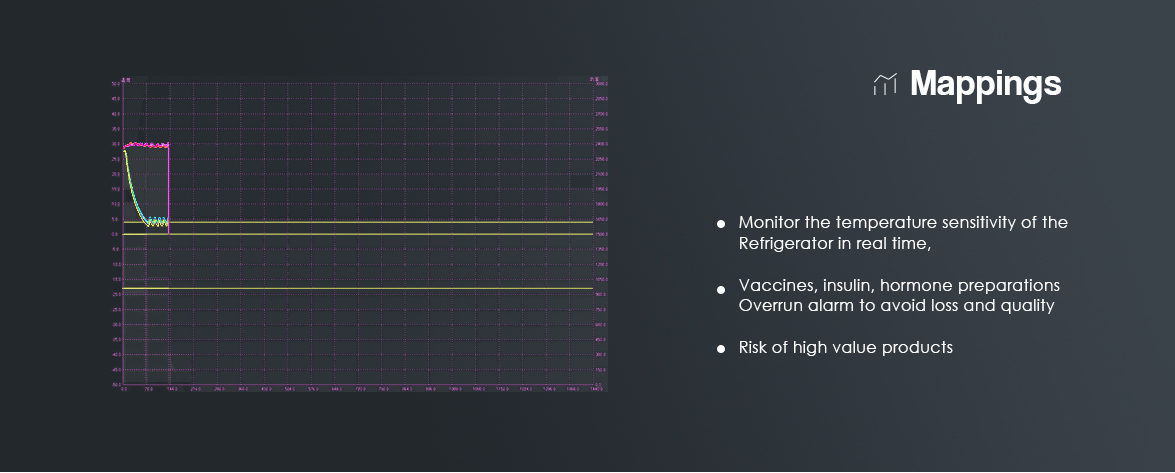

This undercounter lab refrigerator has a temperature control system with a high-precision micro-computer and a stunning digital display screen with a display precision of 0.1℃, and it comes with an access port and RS485 interface for the monitor system. A built-in USB interface is available for storing the last month's data, the data will be transferred and stored automatically once your U-disk is plugged into the interface. A printer is optional. (data can be stored for more than 10 years)

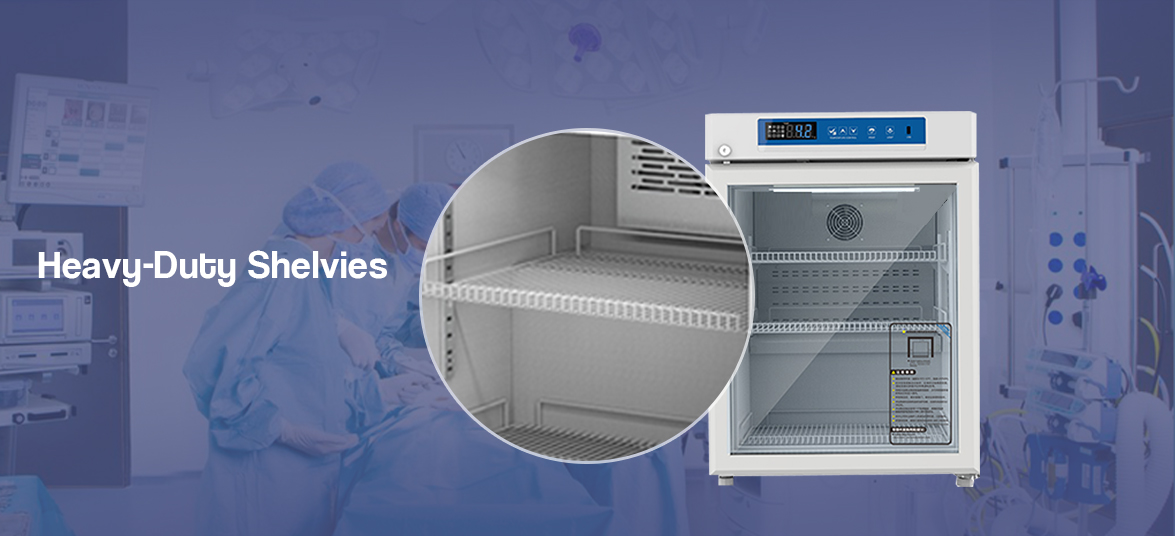

Interior storage sections are separated by heavy-duty shelves, it’s made of durable steel wire finished with PVC-coating, which is easy to clean and replace, the shelves are adjustable to any height for satisfying different requirements. Each shelf has a tag card for classification.

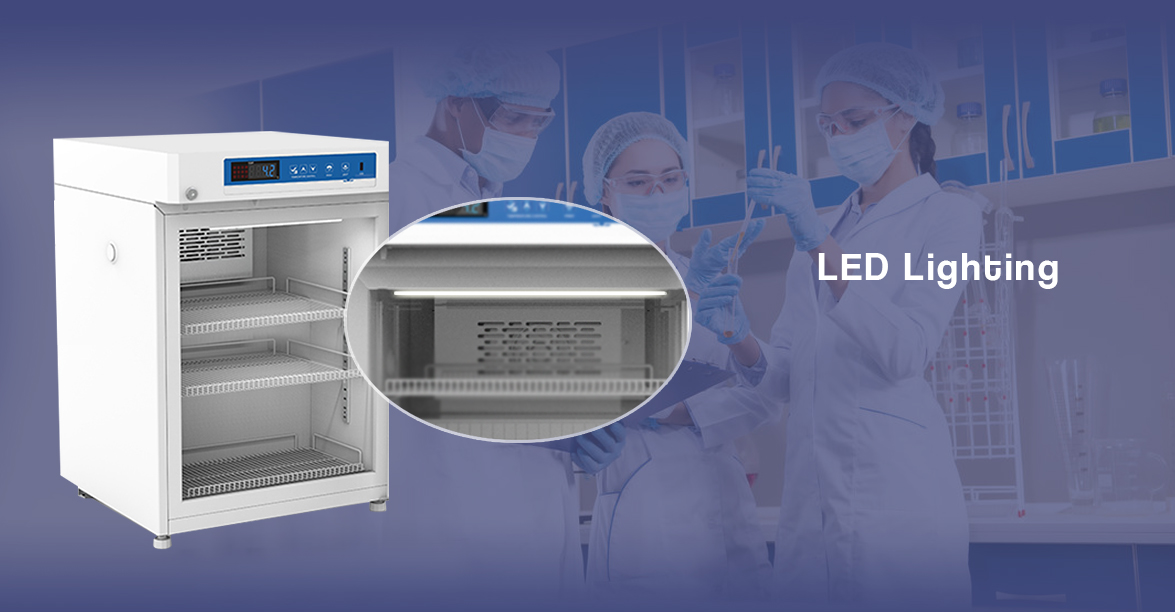

The Interior of the fridge cabinet is illuminated by LED lighting, ensure clear visibility for users to easily get accessed to the stored items.
This small lab refrigerator is for the storage of medicines, vaccines, and also suitable for the storage of researching specimens, biological products, reagents, and more. Excellent solutions for pharmacies, pharmaceutical factories, hospitals, disease prevention & control centers, clinics, and so on.
Model | NW-YC75L |
Capacity(L) | 75 liter |

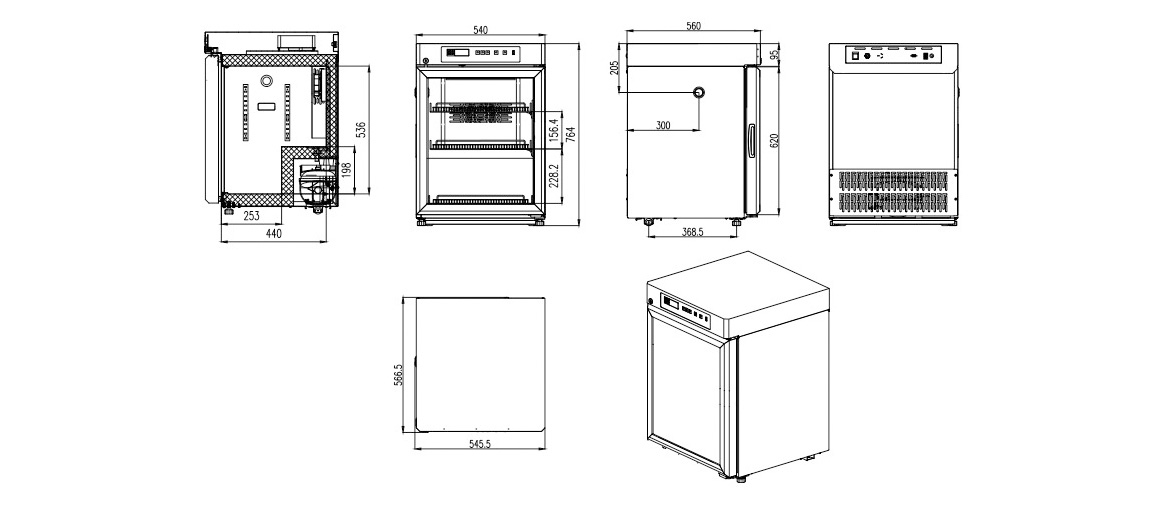

Internal Size(W*D*H)mm | 444*440*536 |
External Size(W*D*H)mm | 540*560*764 |
Package Size(W*D*H)mm | 575*617*815 |
NW/GW(Kgs) | 41/44 |
Performance | |
Temperature Range | 2~8℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | 5℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R600a |
Insulation Thickness(mm) | 50 |
Construction | |
External Material | Powder coated material |
Inner Material | Aumlnum plate with spraying |
Shelves | 3(coated steel wired shelf) |
Door Lock with Key | Yes |
Lighting | LED |
Access Port | 1pc. Ø 25 mm |
Casters | 2+2( levelers feet) |
Data Logging/Interval/Recording Time | USB/Record every 10 minute / 2 years |
Door with Heater | Yes |
Standard Accessory | RS485,Remote alarm contact,Backup battery |
Alarm | |
Temperature | High/Low temperature,High ambient temperature, |
Electrical | Power failure , Low battery, |
System | Sensor error,Door ajar,Built-in datalogger USB Failure,Remote alarm |
Electrical | |
Power Supply(V/HZ) | 230±10%/50 |
Rated Current(A) | 0.69 |
Options Accessory | |
System | Printer,RS232 |
