Small Medical Fridge for Vaccine and Compact Pharmacy Medicine Storage 2℃~8℃

Features:

Small medical fridge for medicine and vaccine NW-YC76L for hospital and clinic pharmacy is equipped with perfect audible and visual alarms including High/low temperature, High ambient temperature, Power failure, Low battery, Sensor error, Door ajar, Built-in datalogger USB Failure, Main board communication error,Remote alarm.


Detail

Tags

  • Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm
  • The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
  • Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
  • 1 cooling fan inside, working while door is closed, stopped while the door is opened
  • The CFC-free polyurethane foam insulating layer is environmentally friendly
  • The electrical heating glass door filled with insert gas performs well in thermal insulation
  • The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
  • The door is equipped with a lock preventing from unauthorized opening and operation

Small Medical Fridge For Vaccine And Compact Pharmacy Medicine

Accurate Control System
High accuracy temperature controller with high sensitivity sensors, keep the temperature within 2~8ºC,
Display accuracy at 0.1ºC.

Refrigeration System
With renowned brand compressor and condenser, better cool performance;
HCFC-FREE refrigerant ensure environmental protection & safety;
Forced air cooling, auto-defrost, temperature uniformity within 3ºC.

Human-oriented
Front opening lockable door with full height handle;
Perfect audible and visual alarms: high and low temperature alarm, sensor
failure alarm, power failure alarm, door ajar alarm;
Cabinet made of high quality steel, inner side with Aluminum plate with spraying material, durable
and easy to clean;
Fitted with 2casters +(2 leveling feet) ;
Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system.


Nenwell Hospital Refrigerator for Pharmacy and Medication Series

Model No Temp. Rang External
Dimension(mm)		 Capacity(L) Refrigerant Certification
NW-YC56L 2~8ºC 540*560*632 56 R600a CE/UL
NW-YC76L 540*560*764 76
NW-YC130L 650*625*810 130
NW-YC315L 650*673*1762 315
NW-YC395L 650*673*1992 395
NW-YC400L 700*645*2016 400 UL
NW-YC525L 720*810*1961 525 R290 CE/UL
NW-YC650L 715*890*1985 650 CE/UL
(During application)
NW-YC725L 1093*750*1972 725 CE/UL
NW-YC1015L 1180*900*1990 1015 CE/UL
NW-YC1320L 1450*830*1985 1320 CE/UL
(During application)
NW-YC1505L 1795*880*1990 1505 R507 /

hospital small medical fridge for vaccine and medicine

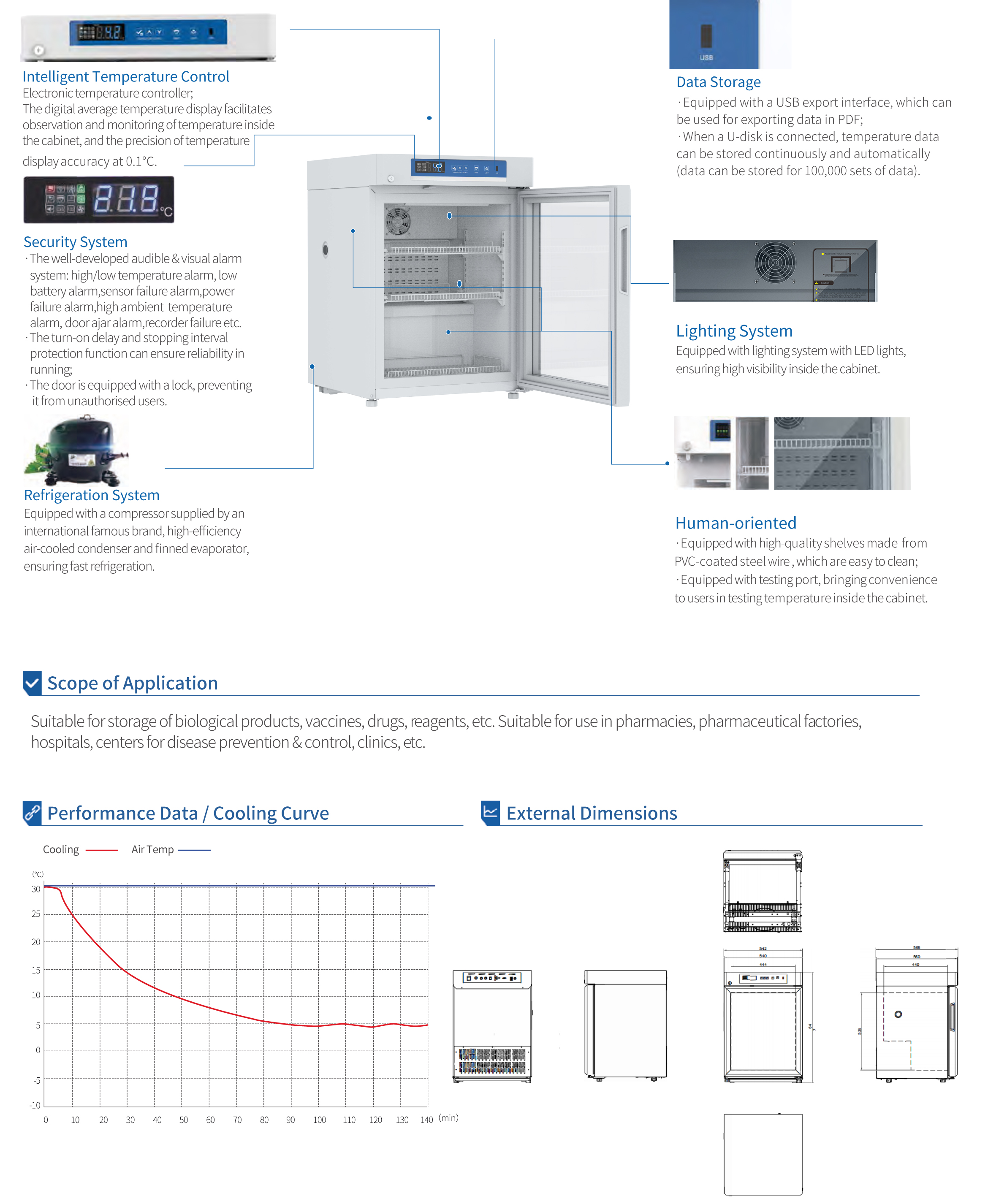

Small Medical Fridge for Medicine and Vaccine NW-YC76L
Model NW-YC76L
Cabinet Type Upright
Capacity(L) 76
Internal Size(W*D*H)mm 444*440*536
External Size(W*D*H)mm 540*565*764
Package Size(W*D*H)mm 575*617*815
NW/GW(Kgs) 41/45
Performance
Temperature Range 2~8ºC
Ambient Temperature 16-32ºC
Cooling Performance 5ºC
Climate Class N
Controller Microprocessor
Display Digital display
Refrigeration
Compressor 1pc
Cooling Method Forced air cooling
Defrost Mode Automatic
Refrigerant R600a
Insulation Thickness(mm) L/R:48,B:50
Construction
External Material PCM
Inner Material Aumlnum plate with spraying
Shelves 2 (coated steel wired shelf)
Door Lock with Key Yes
Lighting LED
Access Port 1pc. Ø 25 mm
Casters 2+2( leveling feet)
Data Logging/Interval/Recording Time USB/Record every 10 minutes / 2 years
Door with Heater Yes
Backup battery Yes
Alarm
Temperature High/Low temperature, High ambient temperature
Electrical Power failure, Low battery
System Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure
Accessories
  Standard RS485, Remote alarm contact
