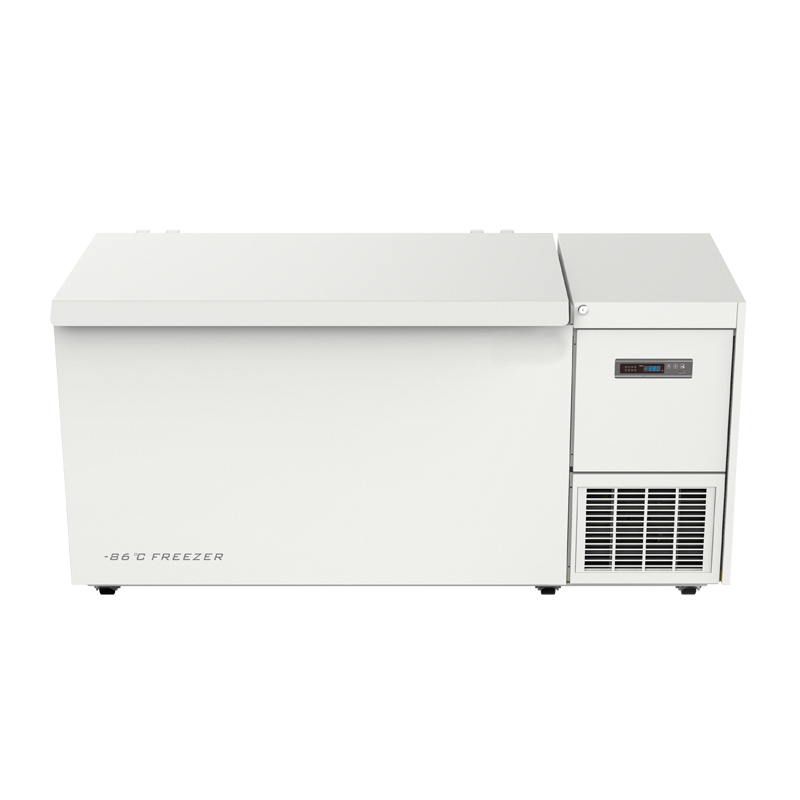

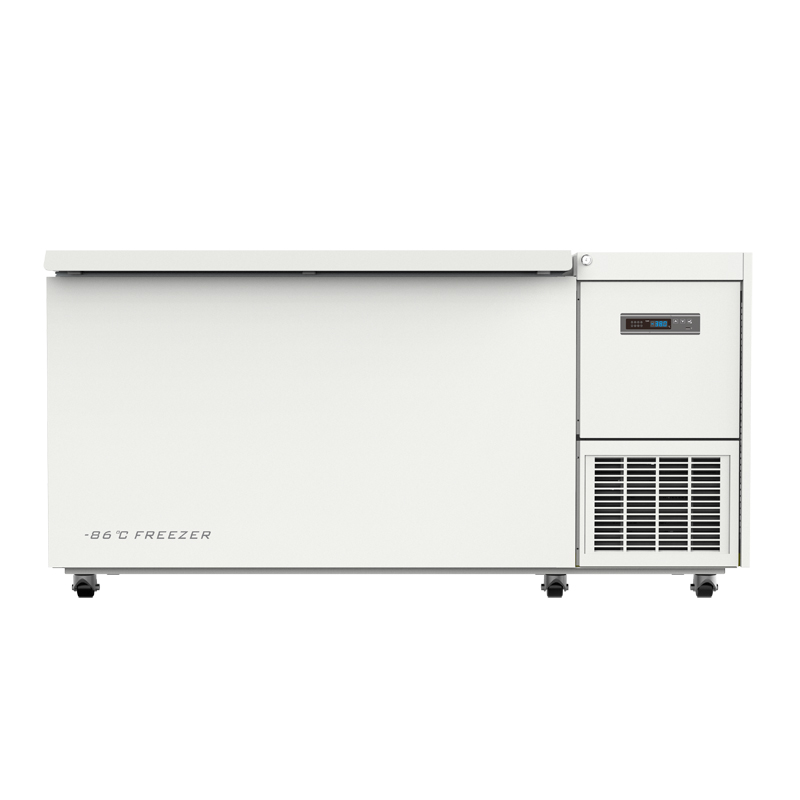

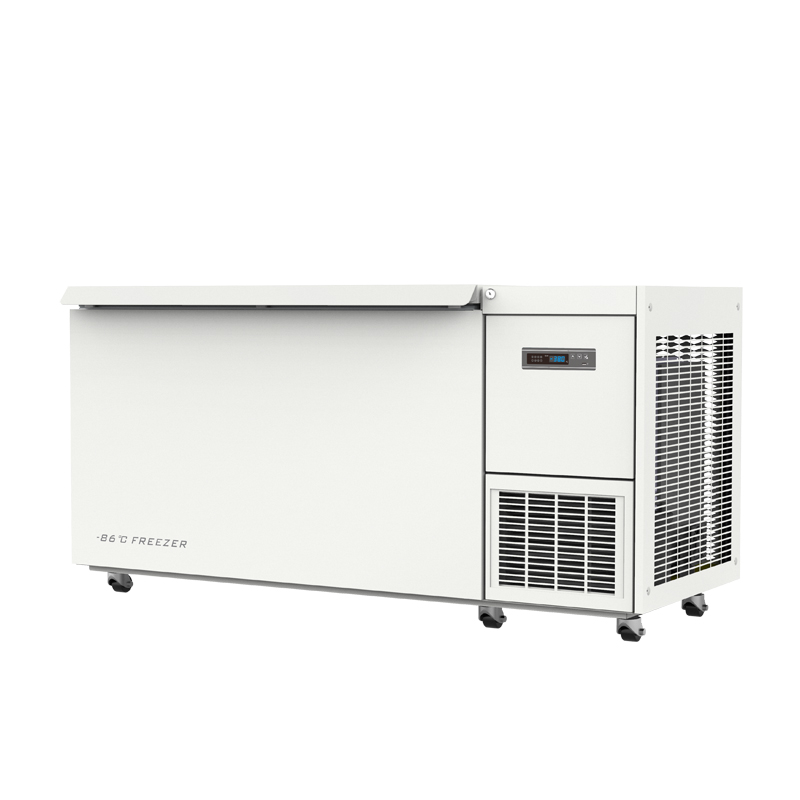

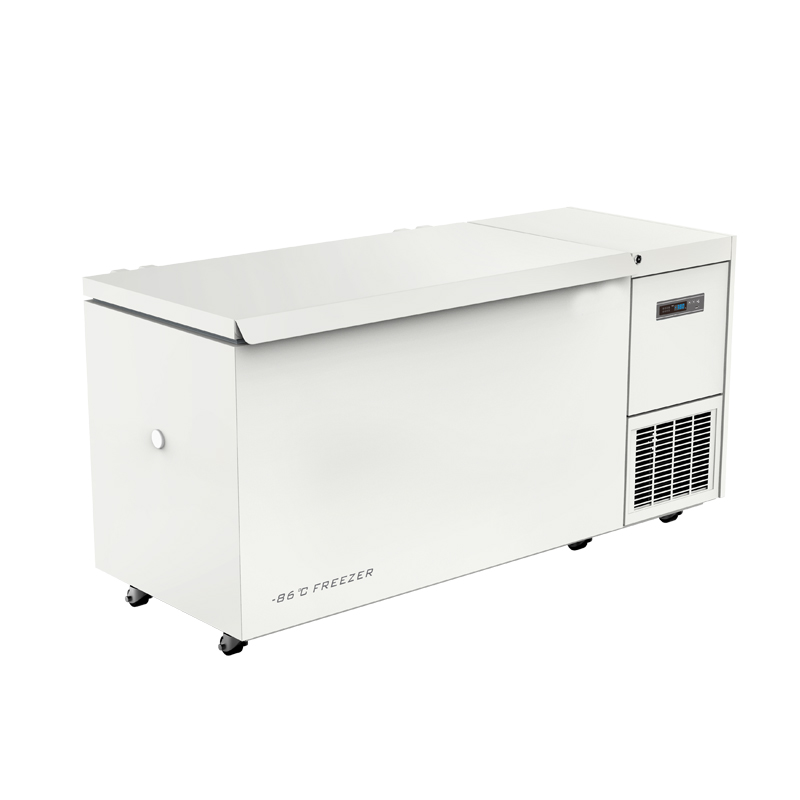

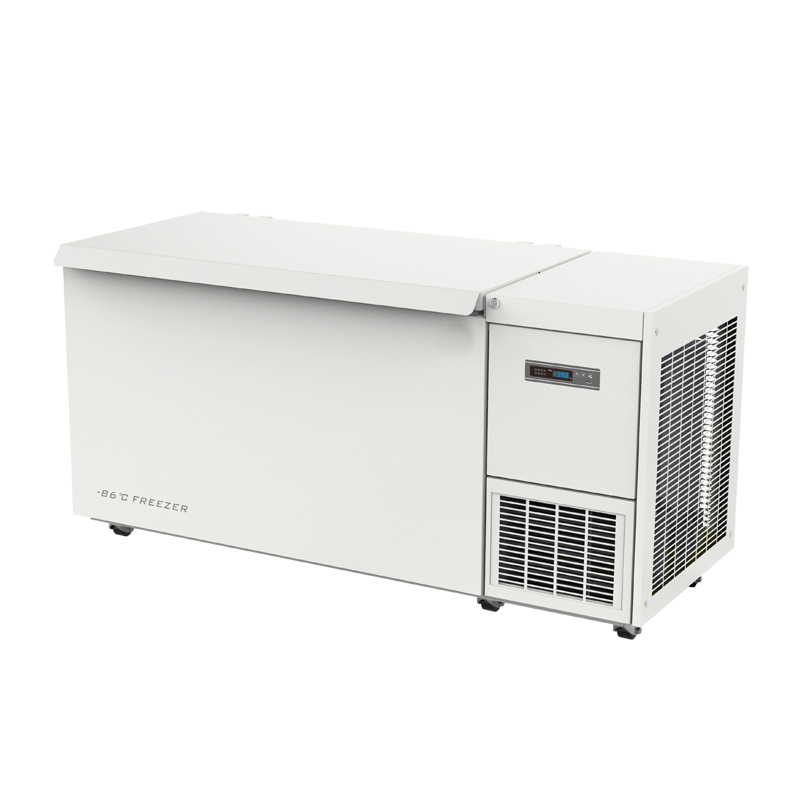

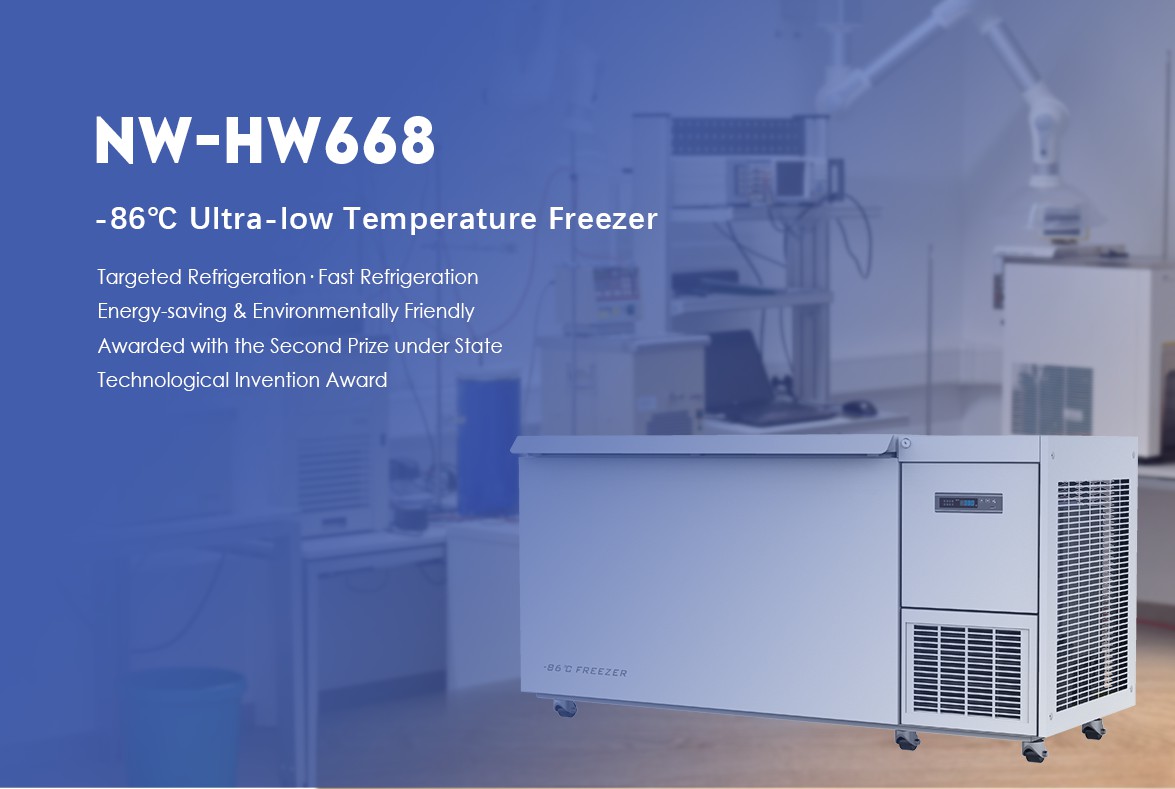

This series of -86 medical chest deep freezers has 3 models for different storage capacities of 138 / 328 / 668 liters in a low temperature ranges from -40℃ to -86℃, it’s a medical freezer that is a perfect refrigeration solution for blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, etc. This ultra low temperature freezer includes a premium compressor, which is compatible with high-efficiency mixture gas refrigerant and helps reduce energy consumption and improve refrigeration performance. The interior temperatures are controlled by an intelligent microprocessor, and it’s clearly displayed on a high-definition digital screen, allows you to monitor and set the temperature to fit the proper storage condition. This medical deep freezer has an audible and visible alarm system to warn you when storage condition is out of abnormal temperature, the sensor fails to work, and other errors and exceptions may occur, greatly protect your stored materials from spoilage.The two-layer heat insulating foamed door with inner and outer door seal and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way.

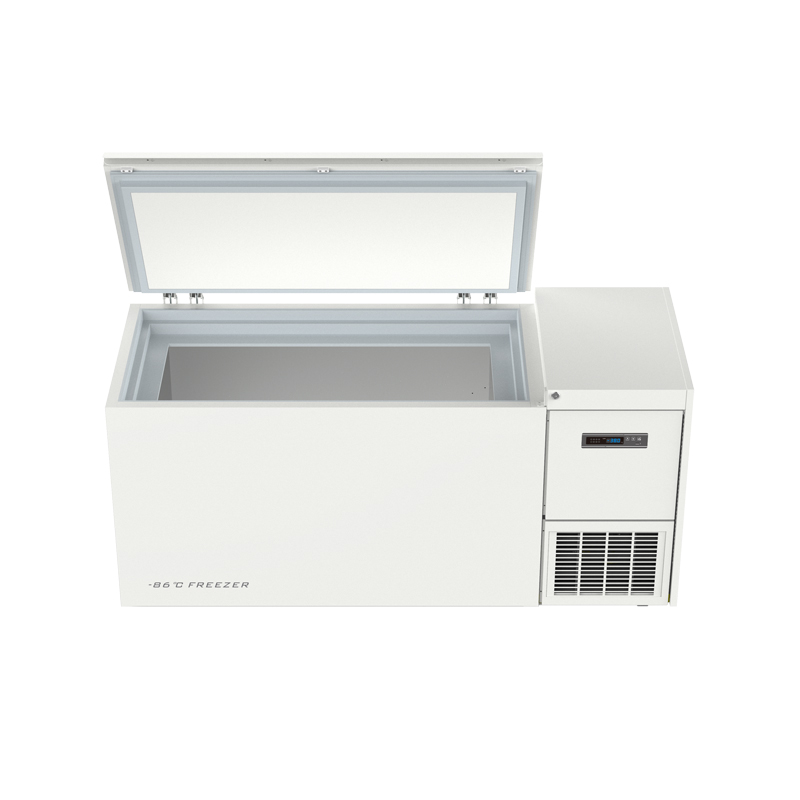

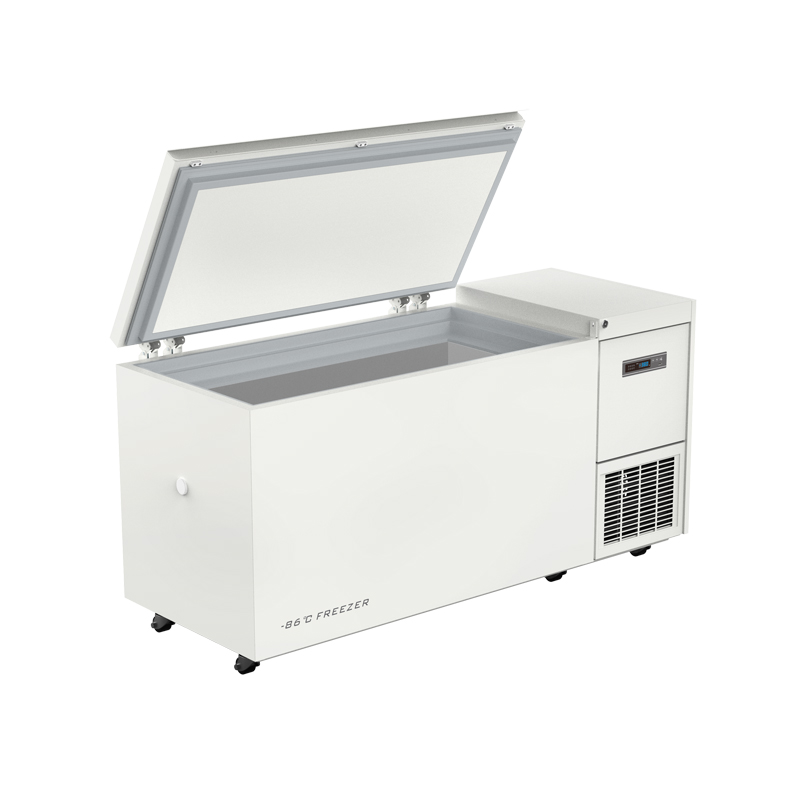

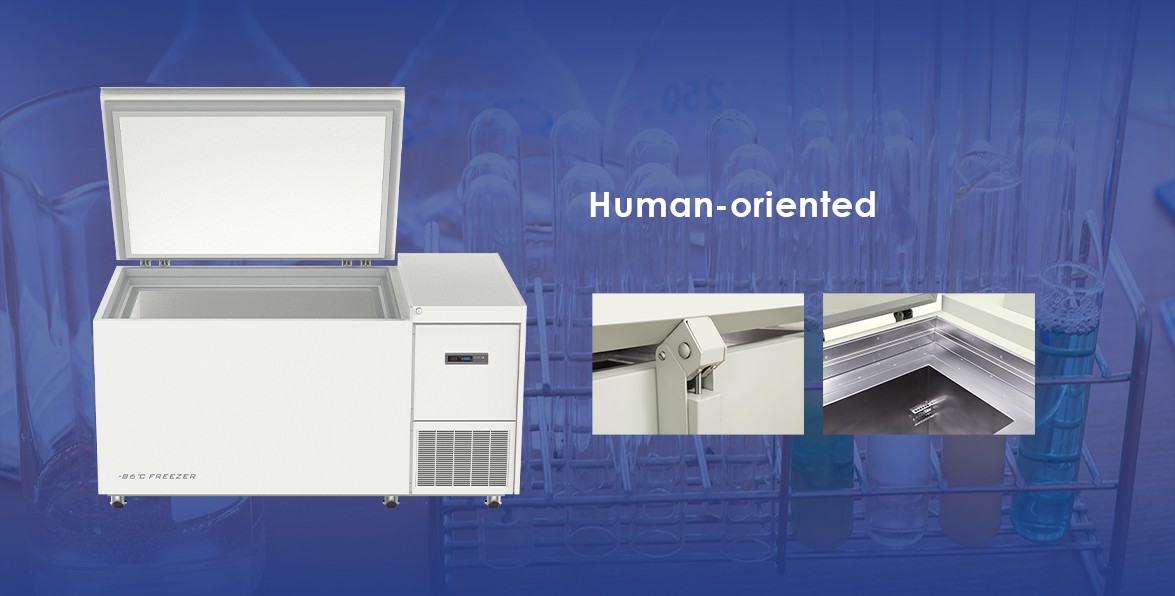

The external of this -86 freezer is made of premium steel plate finished with powder coating, the interior is made of stainless steel, the surface features anti-corrosion, easy cleaning for low maintenance. The top lid has a new-type assisting handle for easy opening and closing. The handle comes with a lock for safety operation. Swivel casters at the bottom for more easy movement and fixation.

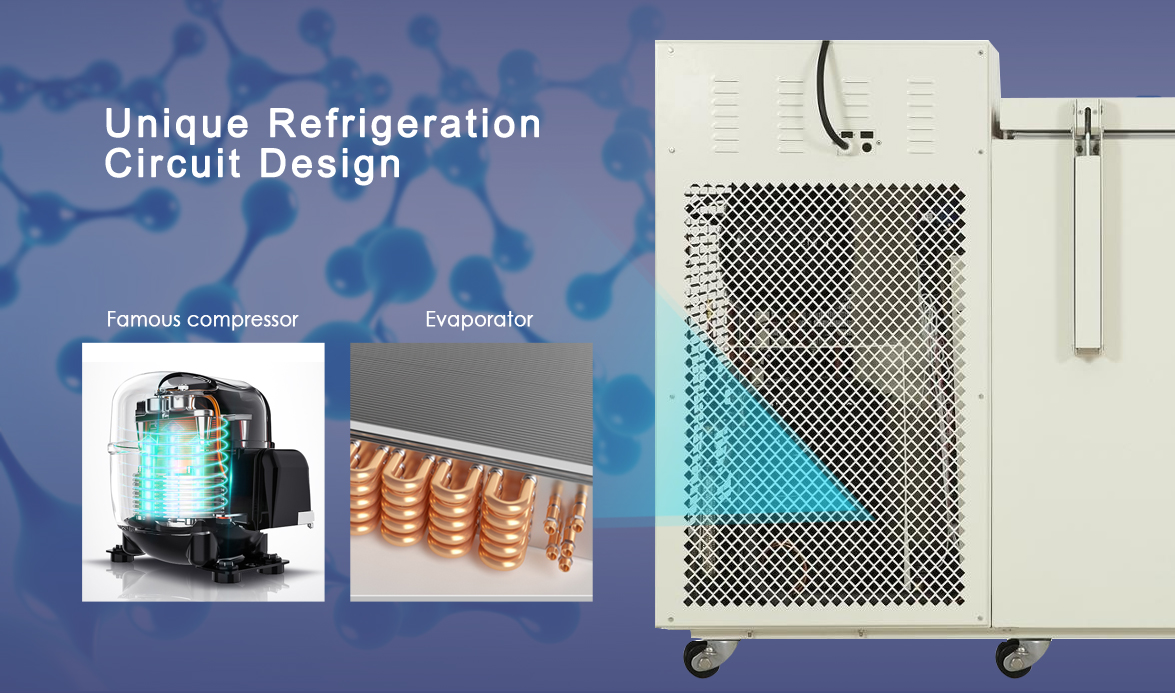

This-86 deep freezer has a premium compressor and condenser, which have features of high-performance refrigeration and the temperatures are kept constant . Its direct-cooling system has a manual-defrost feature. The mixture gas refrigerant is environmentally friendly to help improve working efficiency and reduce energy consumption.

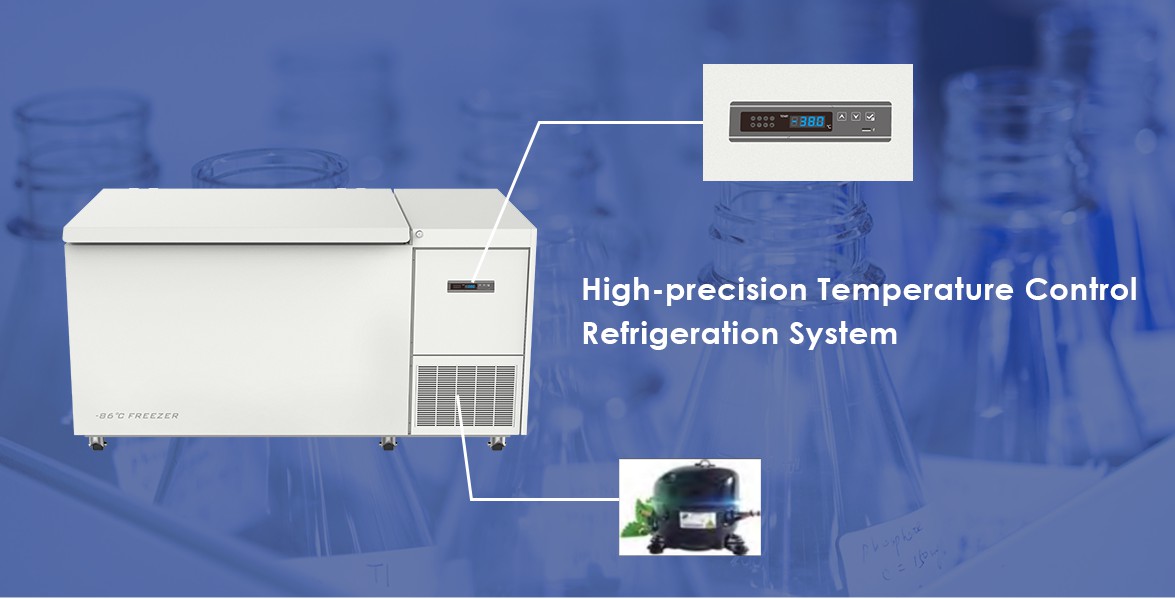

The interior temperature is controlled by a high-precision and user-friendly digital microprocessor, it’s an automatic type of temperature control module, the temperature ranges from -40℃ to -86℃. A high-precision digital temperature screen has a user-friendly interface, it works with built-in high-sensitive platinum resistor temperature sensors to display the interior temperature.

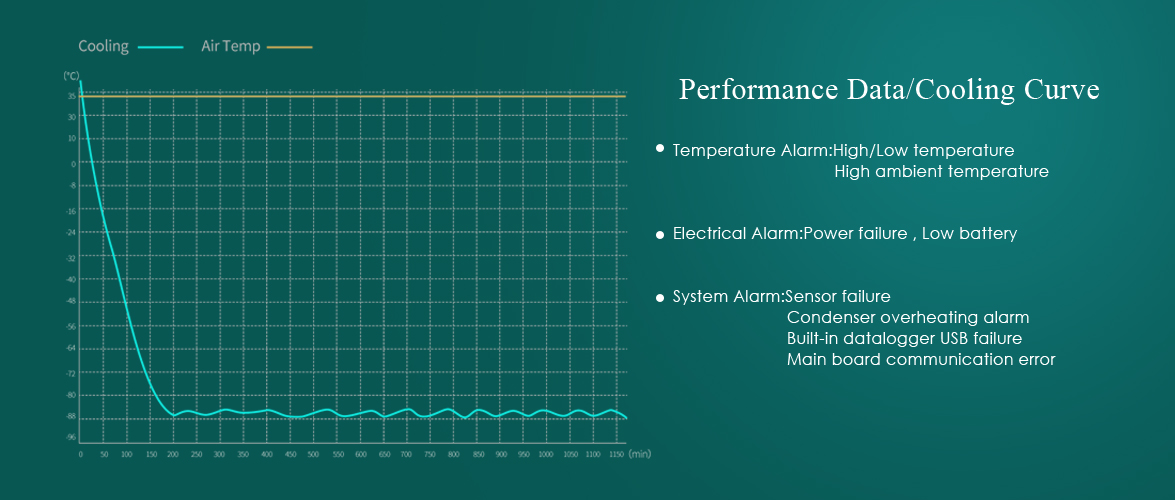

This freezer has an audible and visual alarm device, it works with a built-in sensor to detect the interior temperature. The alarm funtions include:High/low temperature,high ambient temperature,power failure, low battry,sensor failure,condenser overheating alarm,built-in datalogger USB failure,main board communication error. This system also comes with a device to delay turn-on and prevent interval, which can ensure working reliability. Door handle with lock for safety operation.

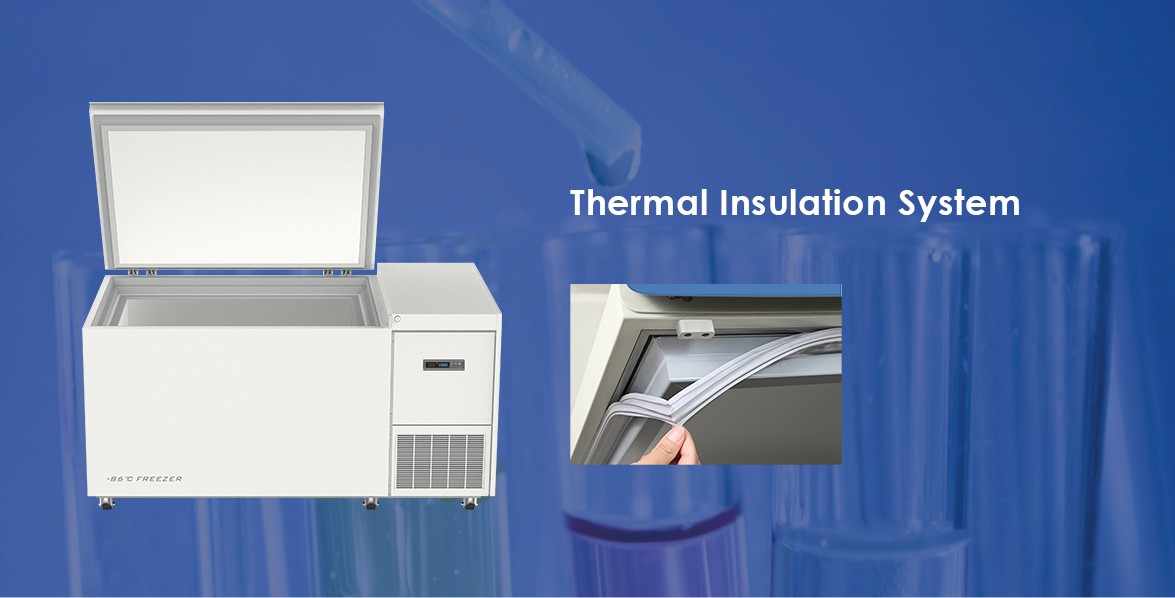

The two-layer heat insulating foamed door with inner and outer door seal and the insulation design of the outer door system with multiple patents can prevent loss of refrigerating capacity in an effective way;No CFC polyurethane foaming technology,super thick VIP insulation which greatly improves the insulation effect.

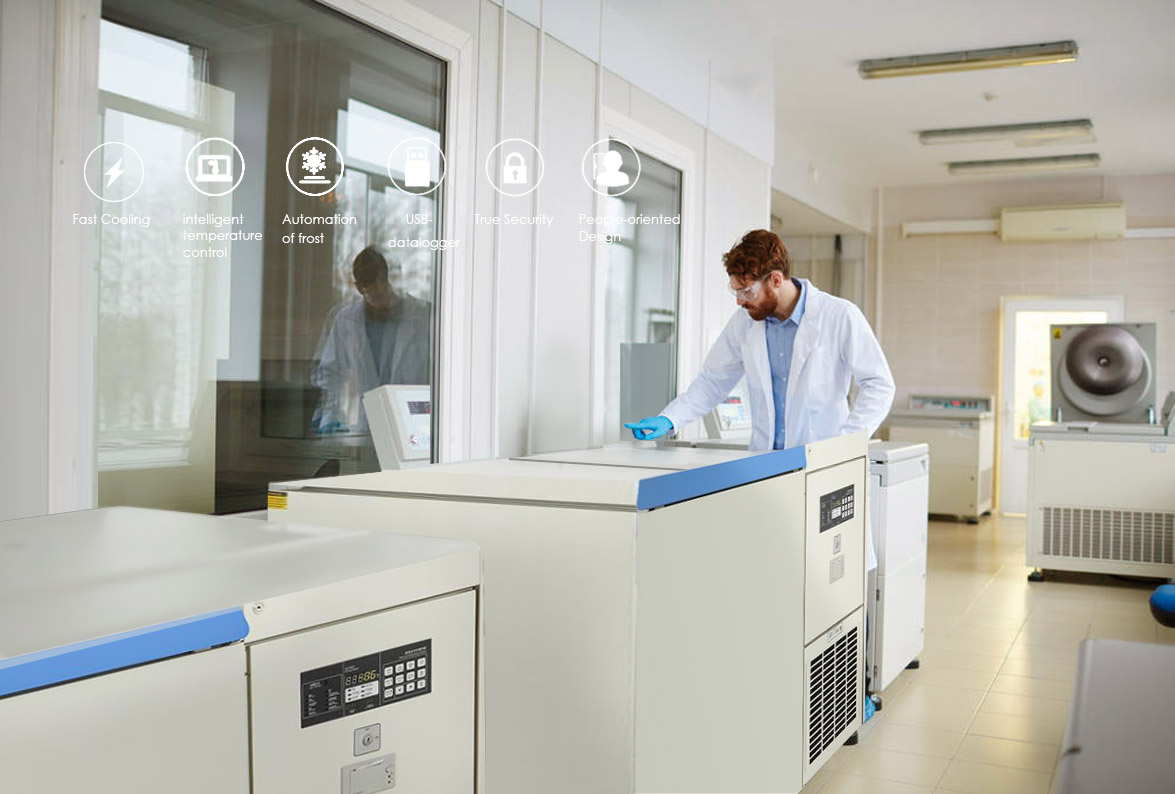

This -86 ultra low temperature medical chest deep freezer is suitable for blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, etc.
Model | NW-DWHW328 |
Capacity(L) | 668 |
Internal Size(W*D*H)mm | 1200*815*610 |

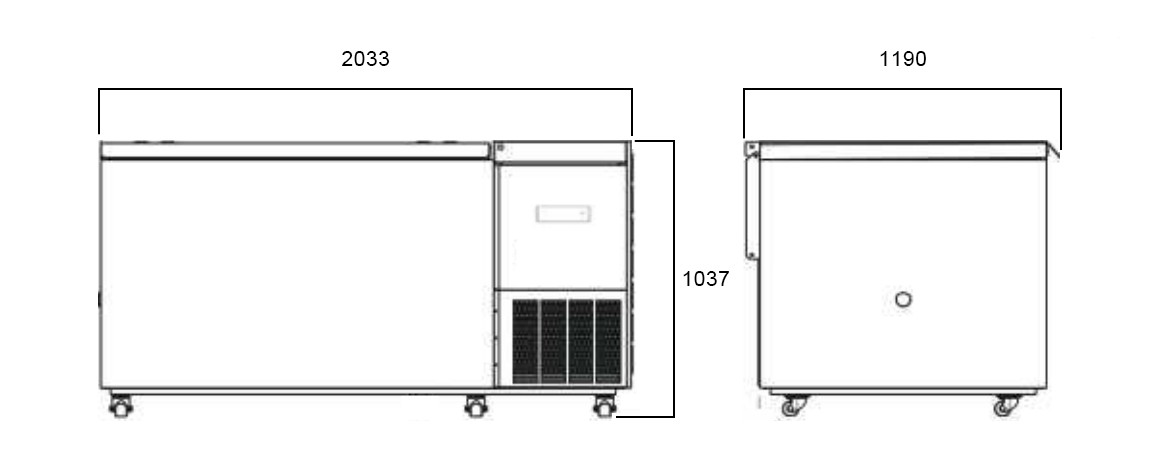

External Size(W*D*H)mm | 2033*1190*1037 |
Package Size(W*D*H)mm | 2145*1305*1234 |
NW/GW(Kgs) | 352/398 |
Performance | |
Temperature Range | -40~-86℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | -86℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 2pc |
Cooling Method | Direct Cooling |
Defrost Mode | Manual |
Refrigerant | Mixture gas |
Insulation Thickness(mm) | 130 |
Construction | |
External Material | Steel plates with spraying |
Inner Material | Stainless steel |
External Door | 1( Steel plates with spraying ) |
Door Lock with Key | Yes |
Foaming Lid | 3 |
Access Port | 1pc. Ø 40 mm |
Casters | 6 |
Data Logging/Interval/Recording Time | USB/Record every 10 minute / 2 years |
Backup Battery | Yes |
Alarm | |
Temperature | High/Low temperature,High ambient temperature |
Electrical | Power failure , Low battery |
System |
Sensor error,Condenser overheating alarm, built-in datalogger USB failure, Main board communication error |
Electrical | |
Power Supply(V/HZ) | 220~240V /50 |
Rated Current(A) | 9.5 |
Accessory | |
Standard | Remote alarm contact,RS485 |
Options | Chart recorder, CO2 backup system, Printer |
