This ice-lined medication & vaccine (ILR) refrigerator (ILR) offers a storage capacity of 275 liters in a temperature range from 2℃ to 8℃, it’s a chest medical refrigerator that is a perfect refrigeration solution for hospitals, pharmaceutical manufacturers, research laboratories to store their medicines, vaccines, specimens, and some special materials with temperature-sensitive. This ice-lined refrigerator includes a premium compressor, which is compatible with high-efficiency CFC refrigerant, this can help reduce energy consumption and improve refrigeration performance. The interior temperatures are controlled by an intelligent microprocessor, and it’s clearly displayed on a high-definition digital screen with an accuracy of 0.1℃, allows you to monitor and set the temperature to fit the proper storage condition. This ILR refrigerator has an audible and visible alarm system to warn you when storage condition is out of normal temperature, the sensor fails to work, and other errors and exceptions may occur, greatly protect your stored materials from spoilage. The top lid is made of stainless steel plate with a polyurethane foam layer, and there are some PVC gaskets on the lid edge to improve thermal insulation.
Details

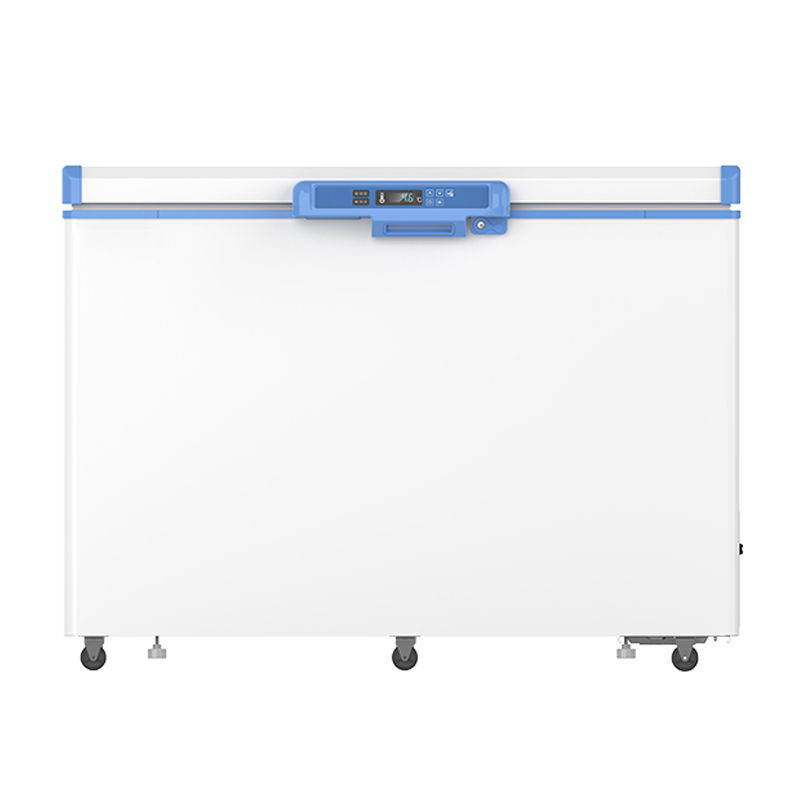

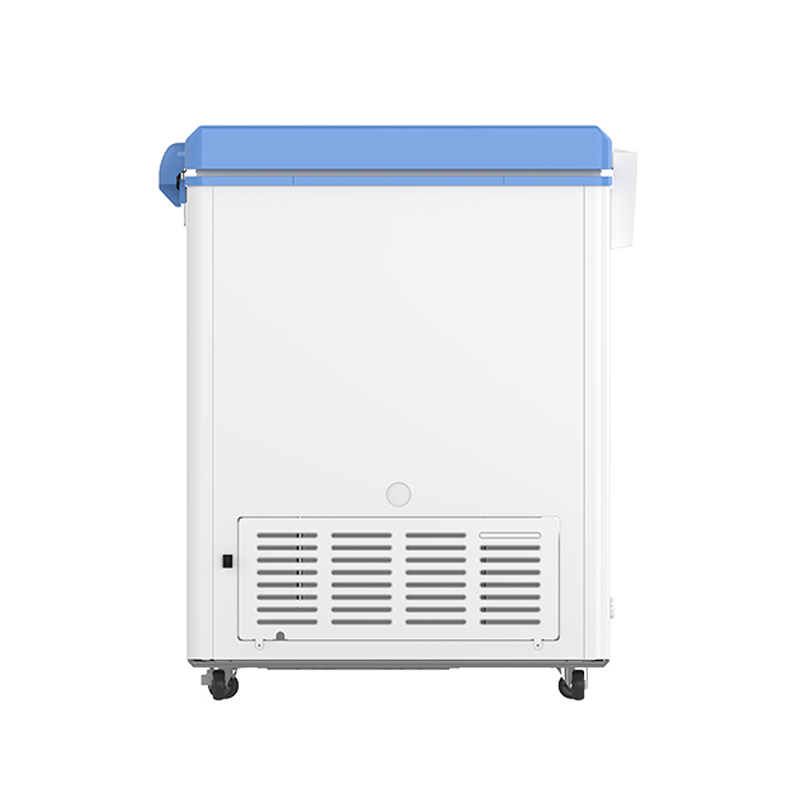

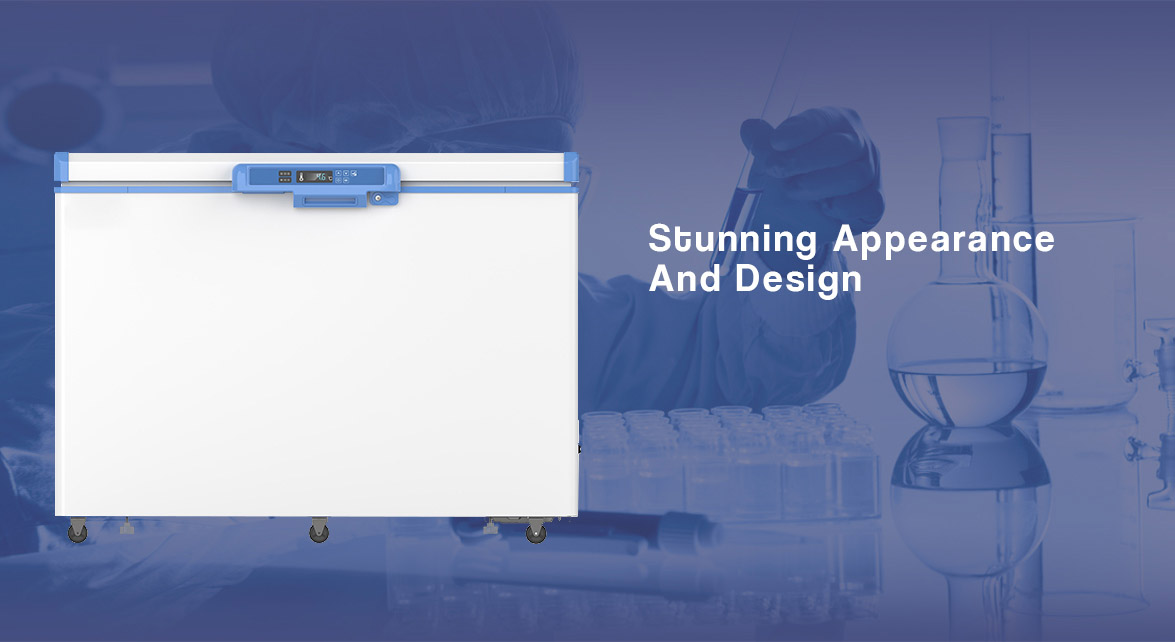

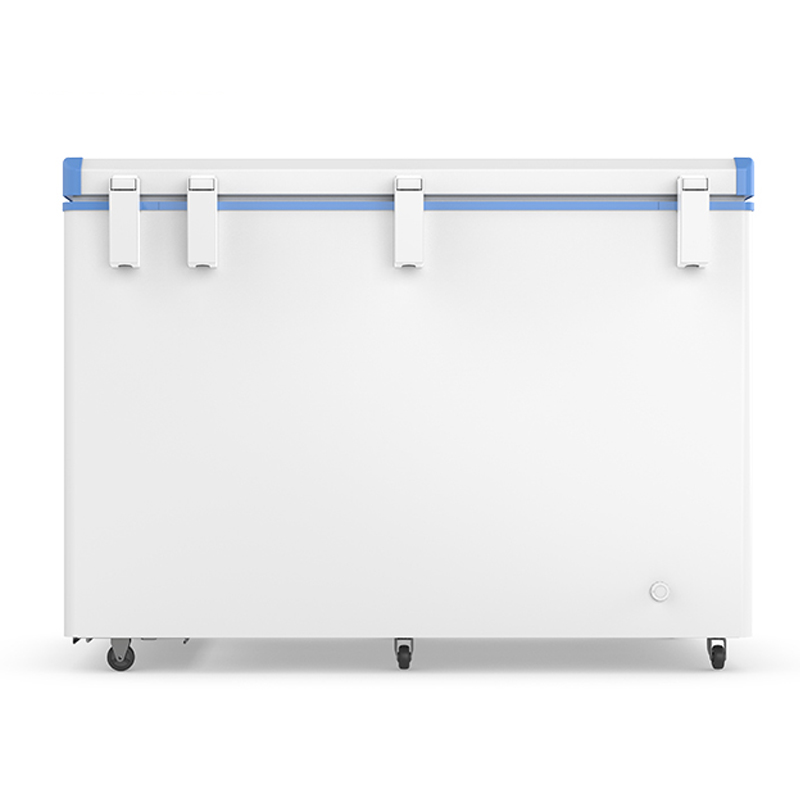

The exterior of this ice-lined medication refrigerator is made of SPCC with epoxy coating, the interior is made of stainless steel plate. The top lid has a recessed handle for preventing damage during transportation and movement.

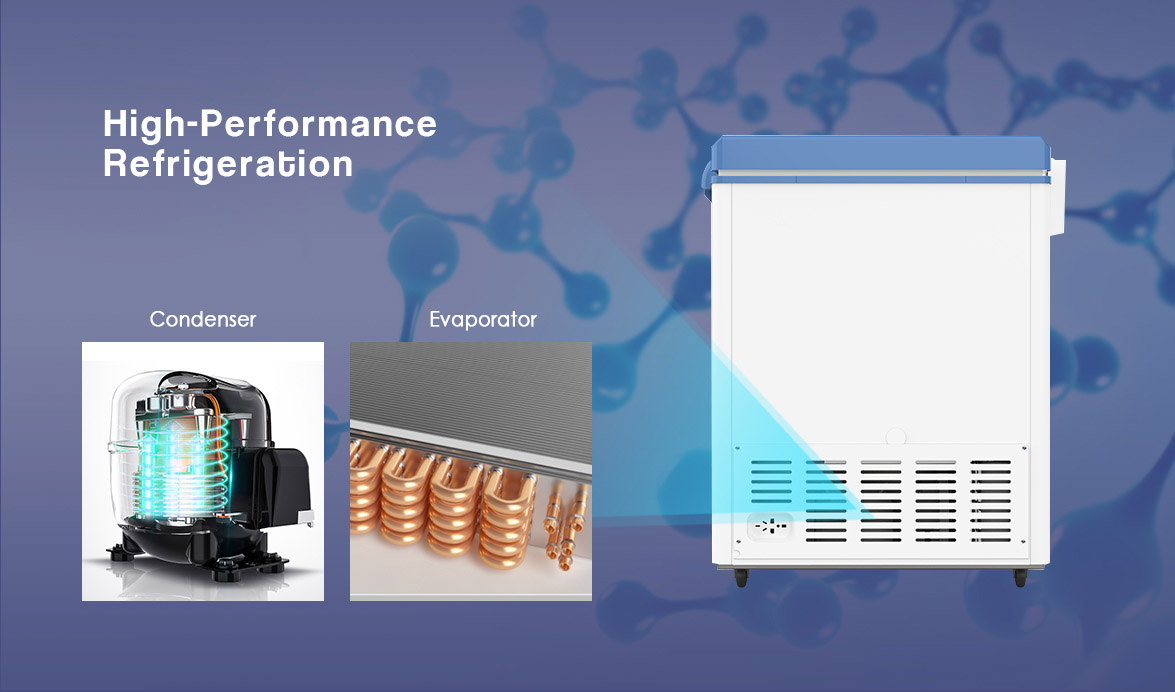

This ILR refrigerator has a premium compressor and condenser, which have features of high-performance refrigeration and the temperatures are kept constant within a tolerance of 0.1℃ and operate with low noise. When the power is off, this system would keep working for 20+ hours to provide sufficient time for transferring stored items. The CFC refrigerant is environmentally friendly to help improve working efficiency and reduce energy consumption.

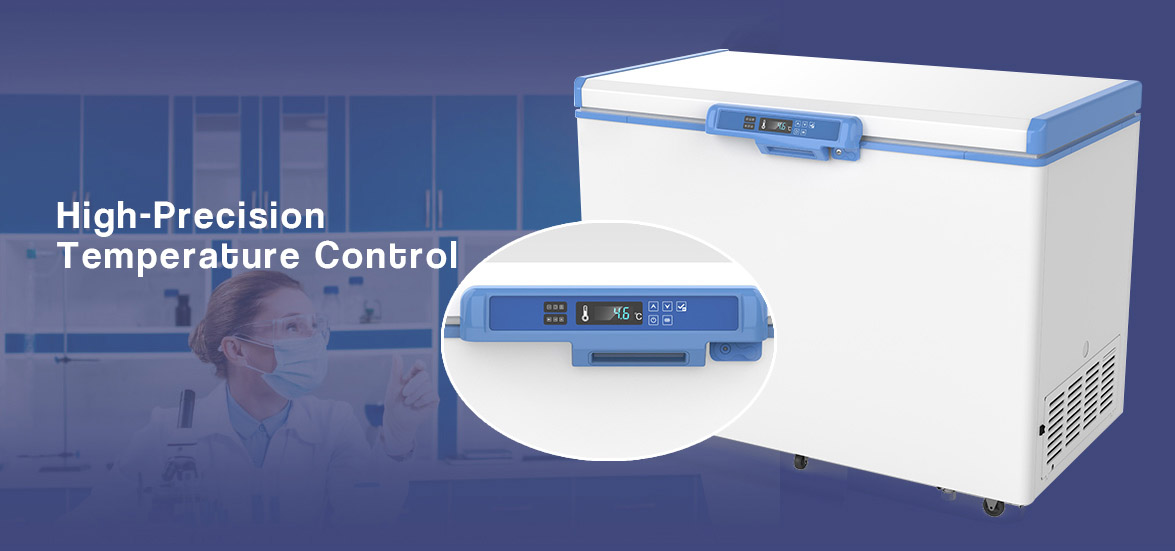

The interior temperature is adjustable and controlled by a high-precision and user-friendly digital microprocessor, it’s a type of automatic temperature control module, the temp. the range is between 2℃~8℃. 4-digit LED screen works with built-in and high-sensitive temperature sensors to display the interior temperature with a precision of 0.1℃.

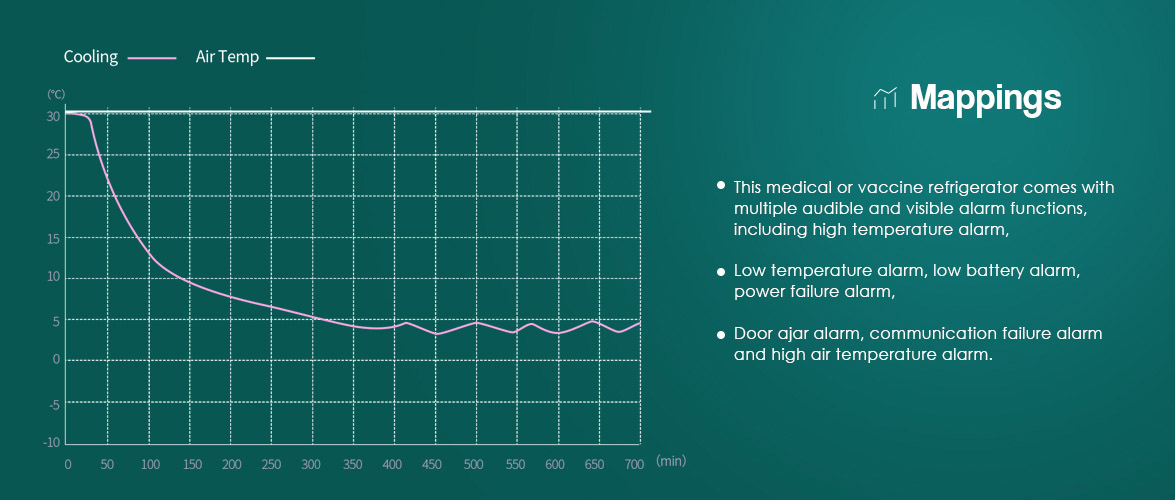

This ILR refrigerator has an audible and visual alarm device, it works with a built-in sensor to detect the interior temperature. This system will alarm when the temperature goes high or low abnormally, the top lid has left open, the sensor doesn’t work, and the power is off, or other problems would occur. This system also comes with a device to delay turn-on and prevent interval, which can ensure working reliability. The lid has a lock for preventing unwanted access.

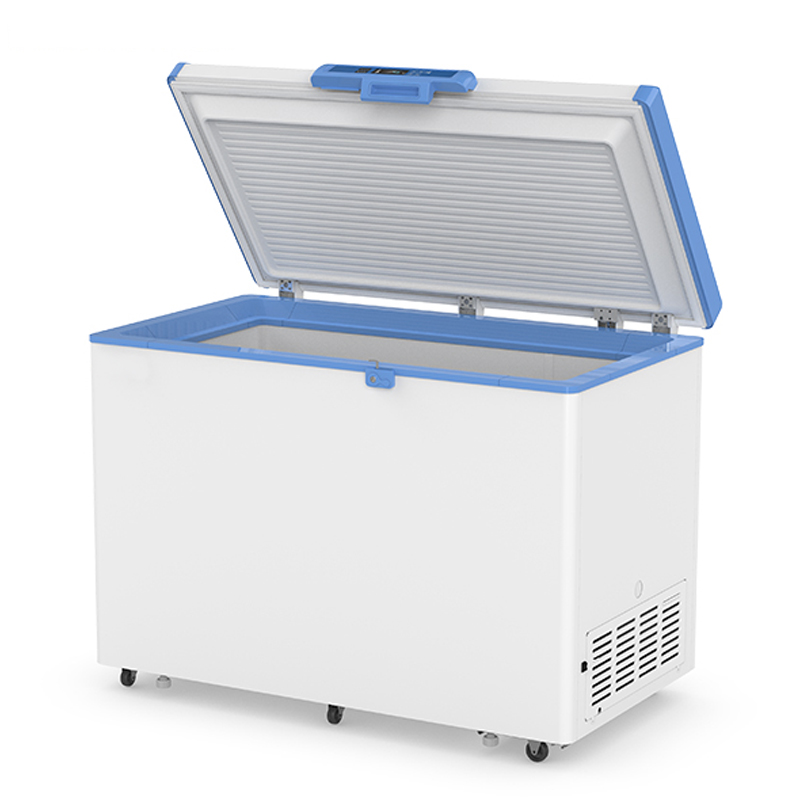

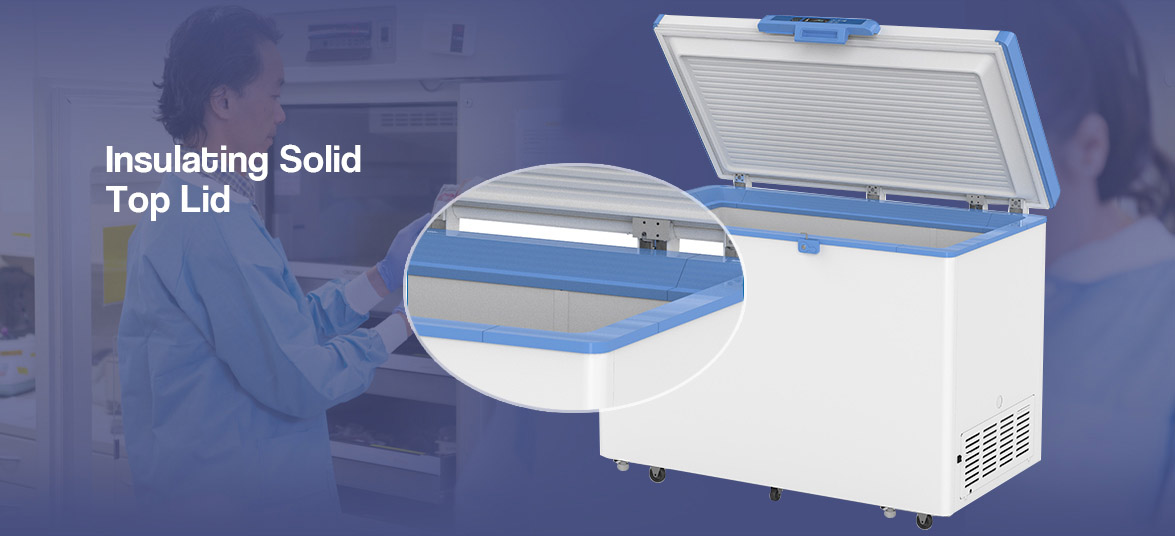

The top lid of this ice-lined freezer has some PVC gasket on the edge for sealing, the lid panel is made of stainless steel plate with a polyurethane foam central layer, which features excellent thermal insulation.

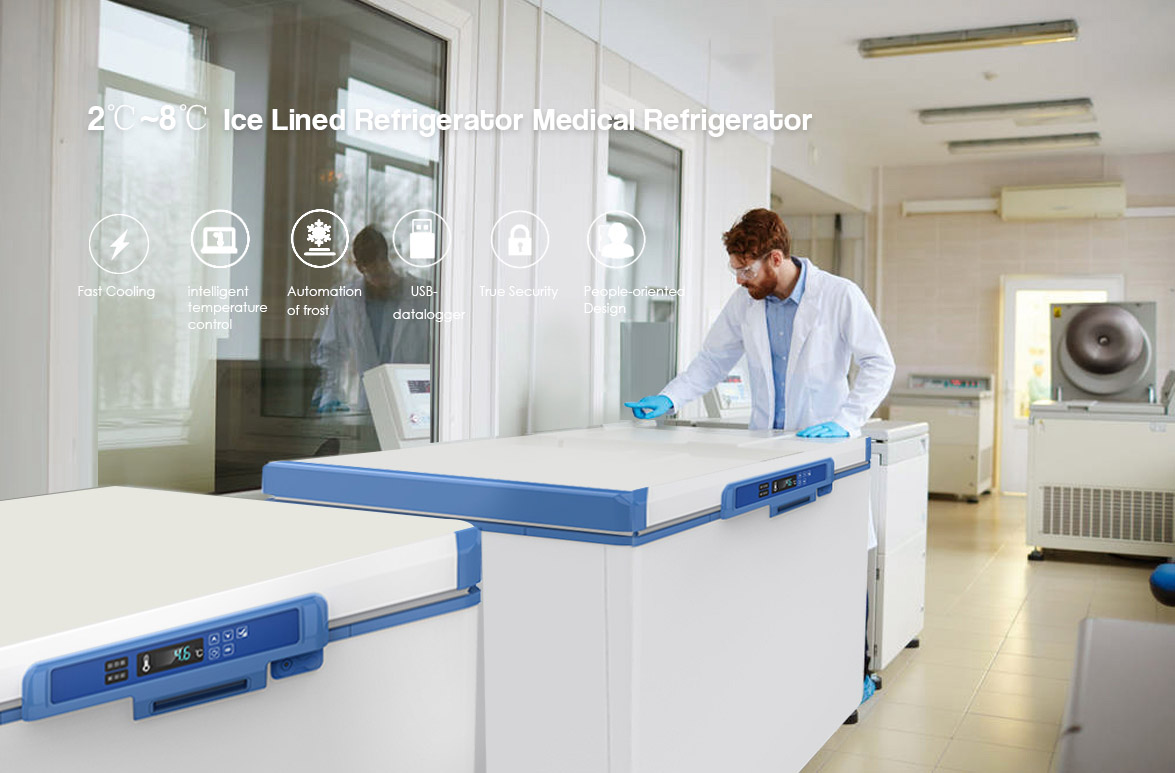

This ice-lined refrigerator (ILR) is suitable for the storage of vaccines, drugs, biological products, reagents, etc. Suitable for use in pharmaceutical factories, hospitals, research institutes, disease prevention & control centers, clinics, etc.
Model | NW-YC275EW |
Capacity(L) | 275 |

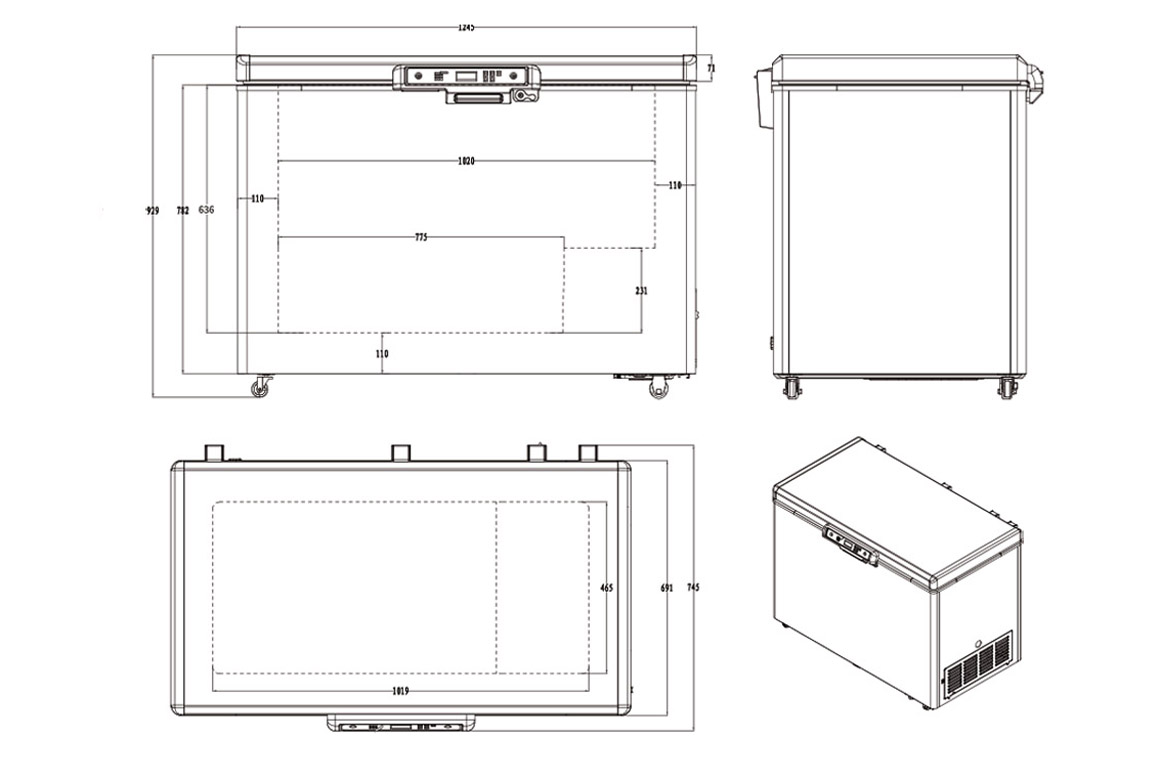

Internal Size(W*D*H)mm | 1019*465*651 |
External Size(W*D*H)mm | 1245*775*929 |
Package Size(W*D*H)mm | 1328*810*1120 |
NW/GW(Kgs) | 87/94 |
Performance | |
Temperature Range | 2~8℃ |
Ambient Temperature | 10-43℃ |
Cooling Performance | 5℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Air cooling |
Defrost Mode | Automatic |
Refrigerant | R290 |
Insulation Thickness(mm) | 110 |
Construction | |
External Material | SPCC epoxy coating |
Inner Material | Stainless steel |
Coated Hanging Basket | 1 |
Door Lock with Key | Yes |
Backup battery | Yes |
Casters | 4(2 caster with brake) |
Alarm | |
Temperature | High/Low temperature |
Electrical | Power failure , Low battery |
System | Sensor error |
Electrical | |
Power Supply(V/HZ) | 230±10%/50 |
Rated Current(A) | 1.45 |
