Constant Temperature under Intelligent
Nenwell Ice Lined Refrigerator adopted High-precision micro-processed temperature control system;
The cabinet has built-in high-sensitivity temperature sensors, ensuring a constant temperature inside it;
Security System
The well-developed audible & visual alarm system (high and low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, etc.) makes it safer for storage.
Turn-on delay & stopping interval protection;
The door is equipped with a lock, preventing it from unauthorized opening;
High-efficiency Refrigeration
Equipped with environmentally-friendly Freon-free refrigerant and compressor supplied by an international famous brand, the refrigerator is characterized by fast refrigeration and low noise.
Human-oriented Design

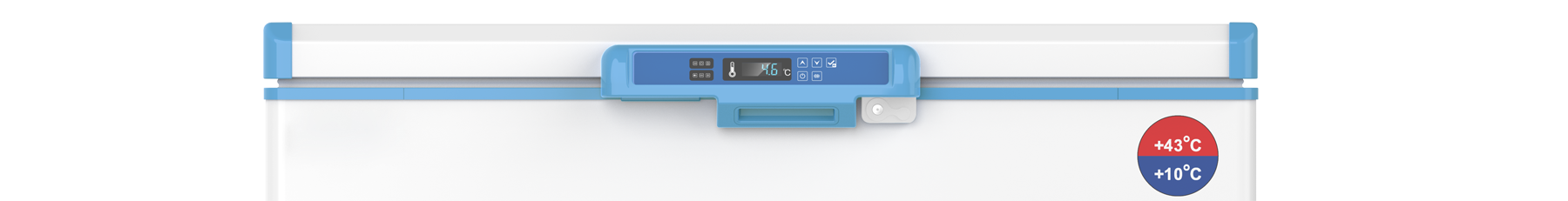

Power on/off key (the button is located on the display panel);
Power-on delay time setting function;
Start-delay time setting function (solving the problem of simultaneous startup of batch products after power failure)
Model No. | Temp. Range | External Dimension | Capacity (L) | Refrigerant | Certification |
NW-YC150EW | 2-8ºC | 585*465*651mm | 150L | HCFC-free | CE/ISO |
NW-YC275EW | 2-8ºC | 1019*465*651mm | 275L | HCFC-free | CE/ISO |

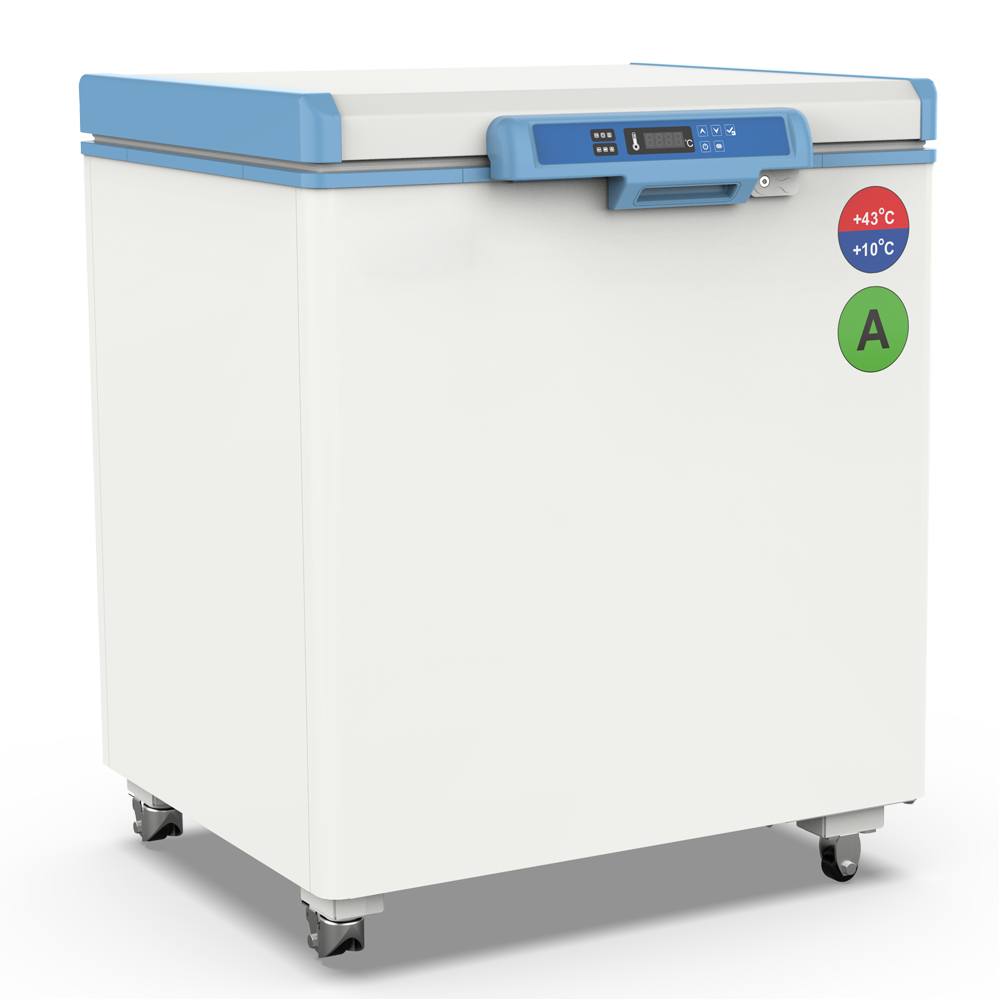

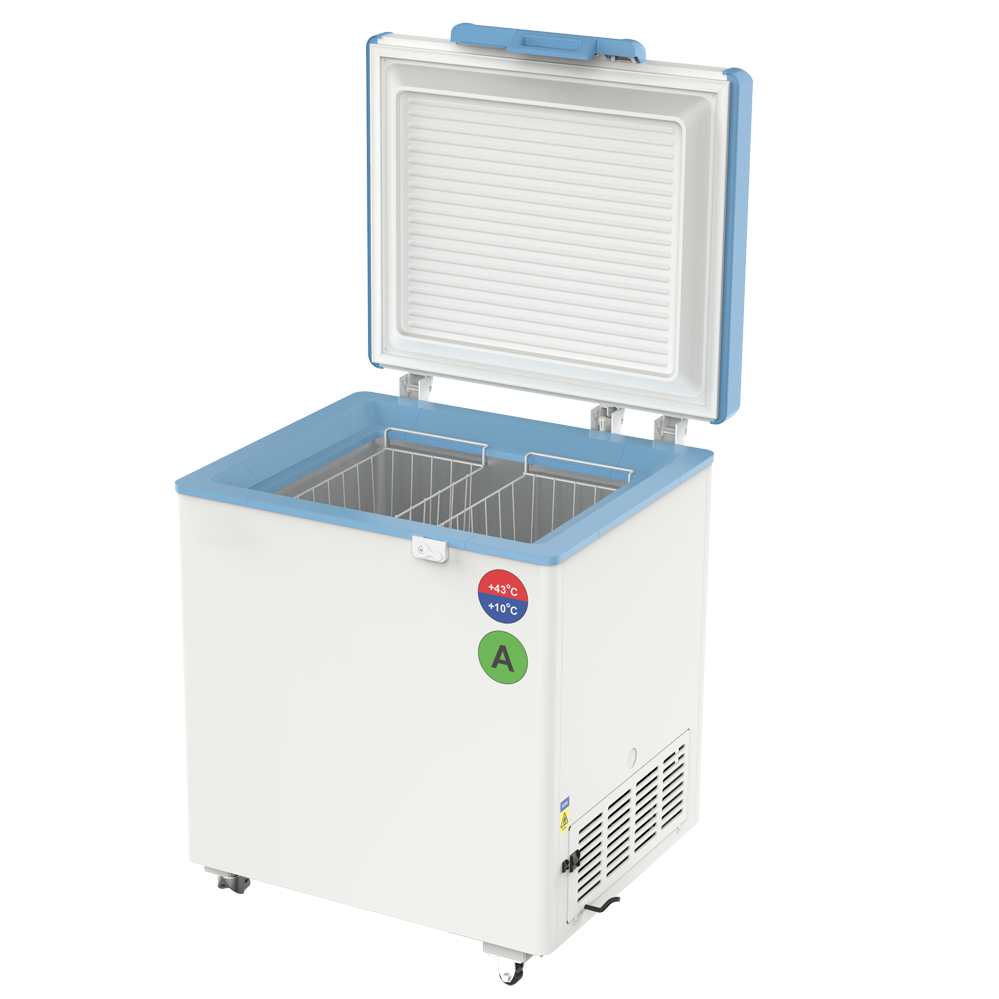

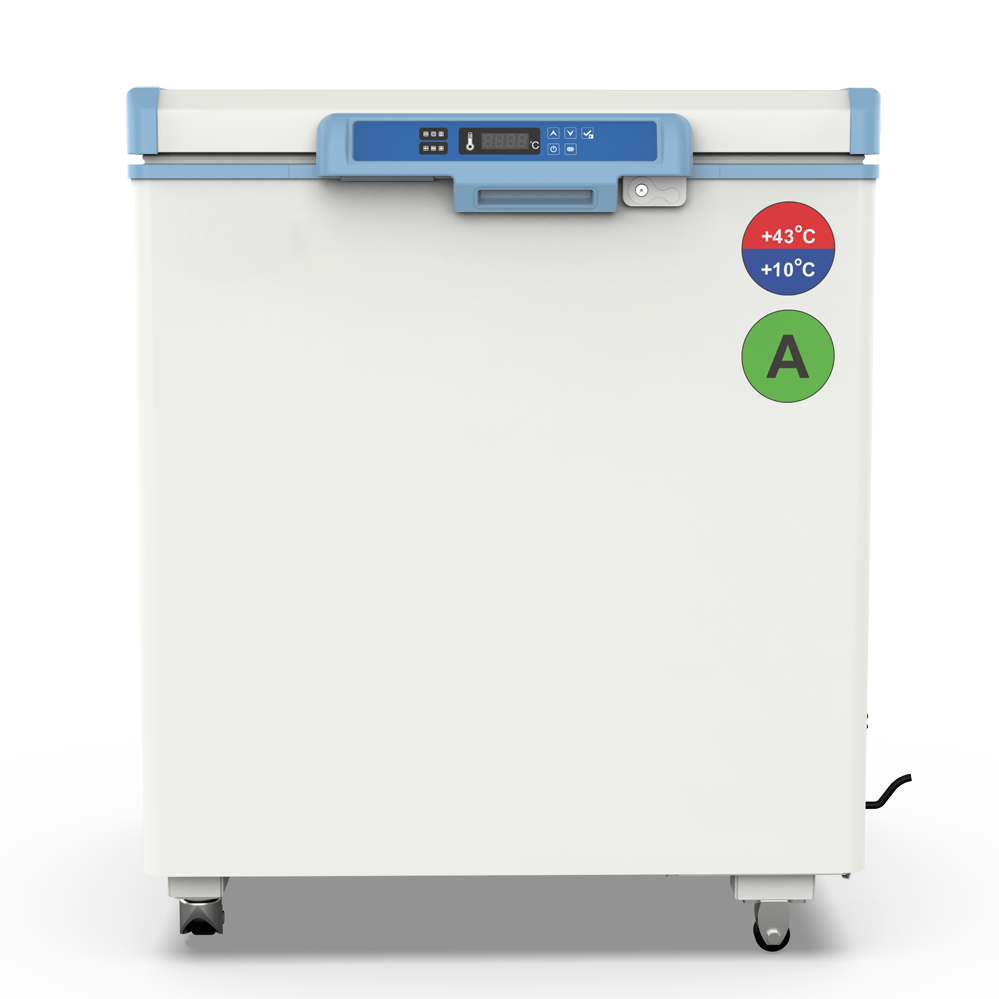

2~8ºC Ice Lined Refrigerator | |
Model | NW-YC150EW |
Cabinet | Chest |
Capacity(L) | 150 |
Internal Size(W*D*H)mm | 585*465*651 |
External Size(W*D*H)mm | 811*775*964 |
Package Size(W*D*H)mm | 875*805*1120 |
NW(Kgs) | 76/96 |
Performance | |
Temperature Range | 2~8ºC |
Ambient Temperature | 10-43ºC |
Cooling Performance | 5ºC |
Climate Class | SN,N,ST,T |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 1pc |
Cooling Method | Direct cooling |
Defrost Mode | Manual |
Refrigerant | R290 |
Insulation Thickness(mm) | 110 |
Construction | |
External Material | Sprayed steel plate |
Inner Material | Stainless steel |

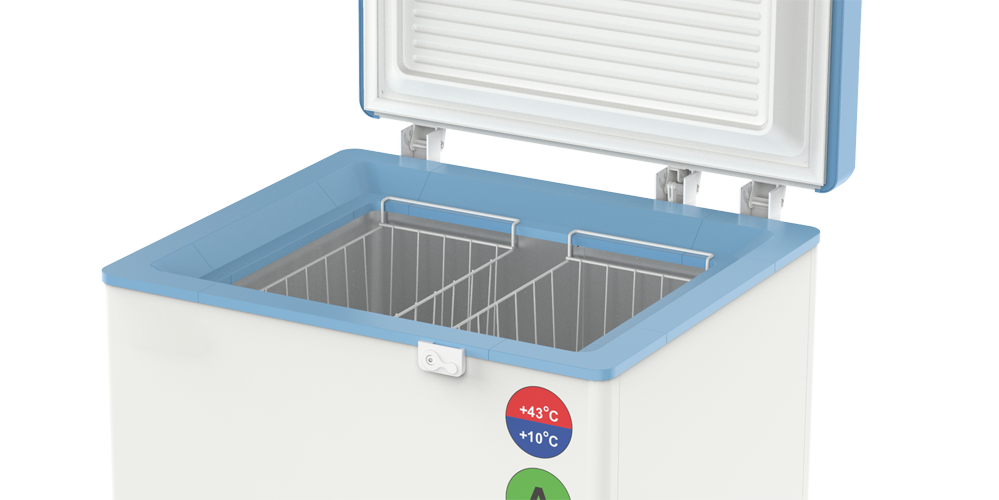

Coated Hanging Basket | 2 |
Door Lock with Key | Yes |
Backup battery | Yes |
Casters | 4 (2 casters with brake) |
Alarm | |
Temperature | High/Low temperature |
Electrical | Power failure, Low battery |
System | Sensor failure |
