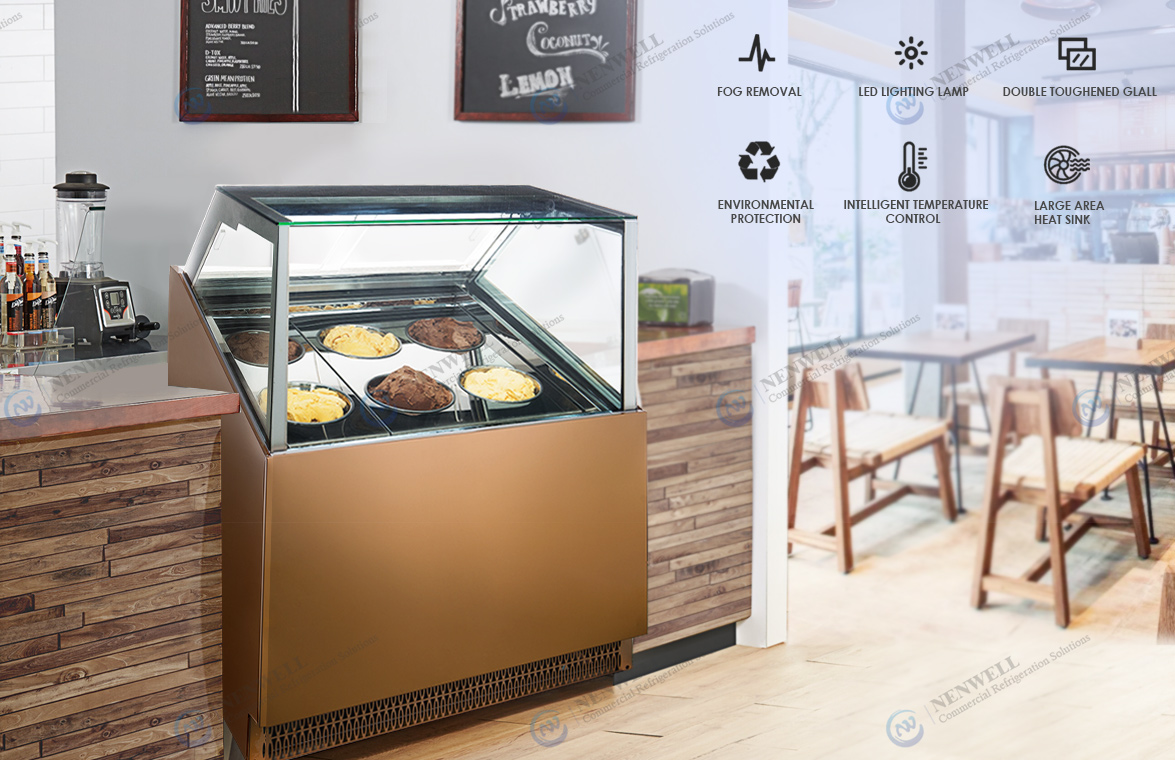

This type of Commercial Italian Ice Cream Dipping Display Freezer is for ice cream chain stores or supermarkets to store and display their ice cream, so it’s also named ice cream display cabinet, which delivers an eye-catching display to attract customers. This ice cream dipping display freezer works with a bottom-mounted condensing unit which is highly efficient and is compatible with R404a refrigerant, the temperature is controlled by an electronic control system and shown on a digital display screen. Stunning exterior and interior with stainless steel and a layer of foam material filled between the metal plates have excellent thermal insulation, several color options are available. The front glass is made from tempered glass which is clear and durable. Numerous options are available for different capacities, dimensions, and styles according to your business requirements and conditions. This ice cream display freezer features excellent freezing performance and energy efficiency to offer a great refrigeration solution to ice cream chain stores and retail businesses.
This ice cream cabinet operates with a premium refrigeration system that is compatible with eco-friendly R404a refrigerant, greatly keeps the storage temperature constant and precise, this unit maintains a temperature range between -18°C and -22°C, it’s a perfect solution to provide high efficiency and low power consumption for your business.

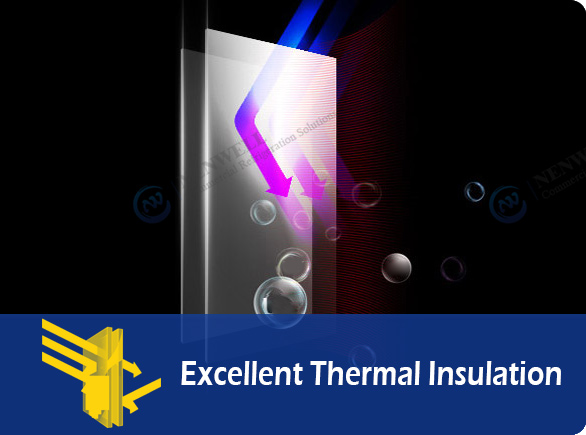

The rear sliding door panels of this ice cream dipping cabinet were made of 2 layers of LOW-E tempered glass, and the door edge comes with PVC gaskets for sealing the cold air inside. The polyurethane foam layer in the cabinet wall can tightly keep the cold air locked inside. All these great features help this fridge perform well at thermal insulation.

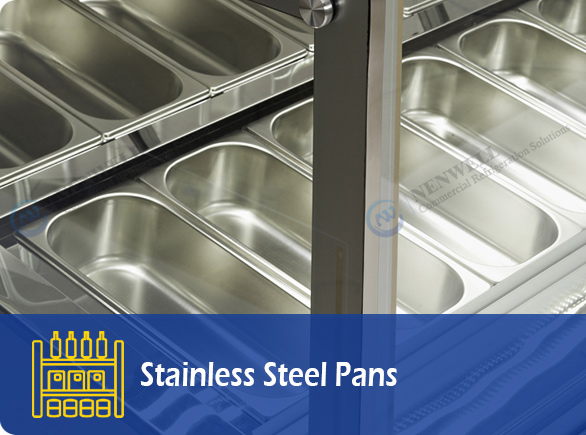

The frozen storage space has several pans, which can separately display different flavors of ice creams. The pans were made of premium stainless steel that features corrosion prevention to provide this ice cream dipping cabinet with long-lasting use.
This ice cream dipping freezer features rear sliding glass doors, front and side glass that comes with a crystally-clear display, and simple item identification to allow customers to quickly browse what flavors are being served, and shop staff can check stock at a glance without opening the door for ensuring the cool air not to escape from the cabinet.

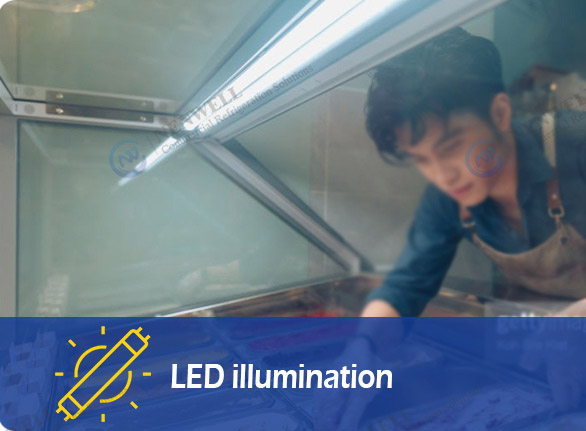

The interior LED lighting of this ice cream display cabinet provides high brightness to help illuminate the ice creams in the cabinet, all flavors behind the glass that you want to sell most can be crystally showed. With an attractive display, your ice creams can catch customer’s eyes to try a bite.

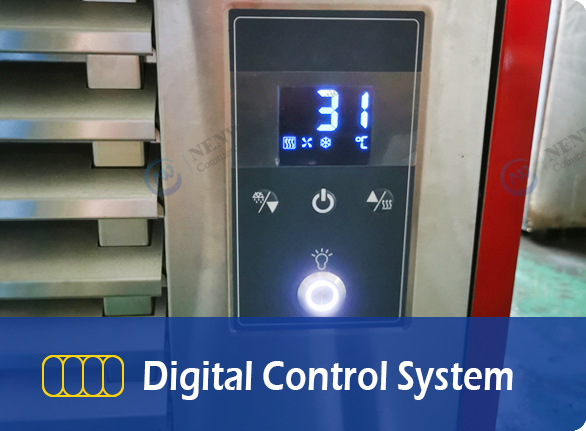

This commercial ice cream dipping cabinet includes a digital control system for easy operation, you can not only turn on/off the power of this equipment but also maintain the temperature, the temperature levels can be accurately set for an ideal ice cream serving and storage condition.
Model No. | Dimension (mm) |
Power (W) |
Voltage (V/HZ) |
Temp. Range | Capacity (Litre) |
Net Weight (KG) |
Pans | Refrigerant |
NW-IF10 | 1050x1060x1350 | 1050W | 220V / 50Hz | -18~-22℃ | 315L | 235KG | 10 | R404a |
NW-IF12 | 1220x1060x1350 | 1120W | 375L | 262KG | 12 | |||
NW-IF14 | 1390x1060x1350 | 1300W | 435L | 289KG | 14 | |||
NW-IF16 | 1560x1060x1350 | 1350W | 495L | 316KG | 16 | |||
NW-IF18 | 1730x1060x1350 | 1400W | 555L | 343KG | 18 | |||
NW-IF20 | 1900x1060x1350 | 1800W | 615L | 370KG | 20 | |||
NW-IF22 | 2070x1060x1350 | 1900W | 675L | 397KG | 22 | |||
NW-IF24 | 2240x1060x1350 | 2000W | 735L | 424KG | 24 |
