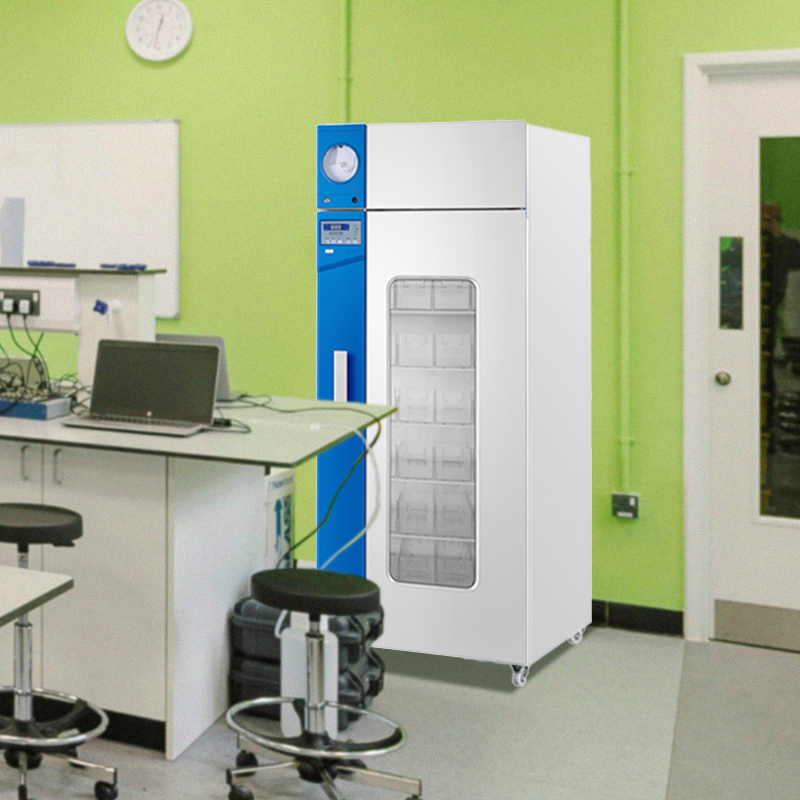

Blood bank blook plasma refrigerator NW-HXC629L, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 765*940*1980 mm, holding 312 blood bags of 450ml
Storage temperature of whole blood :2ºC~6ºC.
storage time of whole blood containing ACD-B and CPD was 21 days.The whole blood preservation solution containing CPDA-1(containing adenine) was preserved for 35 days.When using other blood preservation solutions, the storage period shall be carried out according to the instructions.
Product Description
With Multiple Temperature Control to Guarantee Constant and Precise Temperature
● The inside temperature is constant within 4±1°C, the digital temperature display resolution at 0.1°C.
● Equipped with 6 high-precision sensors and a mechanical thermostat which enables more accurate air cooling and temperature control to ensure uniform temperature inside the unit, maintained within the specified temperature range. The multi-layer inner door design reduces thermal loss after door openings and further ensures the temperature stability inside the cabinet.
● Equipped with complete alarm function, including alarm on high and low temperature, power failure, door ajar, sensor error, and low battery. Two alarm modes including audible buzzer and visual lights with remote alarm interface.
● Back-up battery design ensures alarm and temperature readings continue to operate in the event of a main power failure.
● NFC swipe card module, with safer storage management.
Ability to record temperature data for ten years by using the USB interface, an optional disc temperature recorder is also available.
NFC rights management system
● NFC rights management system is designed with an electromagnetic lock with controllable, checkable and traceable flow direction, providing safer blood management.
Model No | Temp. Range | External | Capacity(L) | Capacity (400ml blood bags) |
Refrigerant | Certification | Type |
Dimension(mm) | |||||||
NW-HYC106 | 4±1ºC | 500*514*1055 | 106 | R600a | CE | Upright | |
NW-XC90W | 4±1ºC | 1080*565*856 | 90 | R134a | CE | Chest | |
NW-XC88L | 4±1ºC | 450*550*1505 | 88 | R134a | CE | Upright | |
NW-XC168L | 4±1ºC | 658*772*1283 | 168 | R290 | CE | Upright | |
NW-XC268L | 4±1ºC | 640*700*1856 | 268 | R134a | CE | Upright | |
NW-XC368L | 4±1ºC | 806*723*1870 | 368 | R134a | CE | Upright | |
NW-XC618L | 4±1ºC | 812*912*1978 | 618 | R290 | CE | Upright | |
NW-HXC158 | 4±1ºC | 560*570*1530 | 158 | HC | CE | Vehicle-mounted | |
NW-HXC149 | 4±1ºC | 625*820*1150 | 149 | 60 | R600a | CE/UL | Upright |
NW-HXC429 | 4±1ºC | 625*940*1830 | 429 | 195 | R600a | CE/UL | Upright |
NW-HXC629 | 4±1ºC | 765*940*1980 | 629 | 312 | R600a | CE/UL | Upright |
NW-HXC1369 | 4±1ºC | 1545*940*1980 | 1369 | 624 | R600a | CE/UL | Upright |
NW-HXC149T | 4±1ºC | 625*820*1150 | 149 | 60 | R600a | CE/UL | Upright |
NW-HXC429T | 4±1ºC | 625*940*1830 | 429 | 195 | R600a | CE/UL | Upright |
NW-HXC629T | 4±1ºC | 765*940*1980 | 629 | 312 | R600a | CE/UL | Upright |
NW-HXC1369T | 4±1ºC | 1545*940*1980 | 1369 | 624 | R600a | CE/UL | Upright |
NW-HBC4L160 | 4±1ºC | 600*620*1600 | 160 | 180 | R134a | Upright |
