Blood Plasma Freezer for Hospital and Clinic Plasma Storage Transfusion (NW-HXC1369)

Features:

Blood bank blook plasma refrigerator NW-HXC629L, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 1545*940*1980 mm, holding 624 blood bags of 450ml

Dual Temperature Control Technology
With Multiple Safety Guarantees to Provide Product Parameters




  • Cabinet Type:: Basket-Type
  • Cooling Type: : Forced air cooling
  • Defrost Mode:: Auto
  • Refrigerant:: HC
  • Voltage (V/Hz):: 220/50
  • Internal Temperature (℃):: 4±1
  • External Dimension (w*d*h mm):: 1545*940*1980
  • Effective Volume(L):: 629
  • Loading Capacity (400ml): 624 bags
  • Detail

    Tags

    Blood Plasma Freezer for Hospital and Clinic Plasma Storage Transfusion

    Blood bank blook plasma refrigerator NW-HXC1369L, dedicated by professional manufacturer Nenwell factory being well up to international standards for medical and laboratory, with dimensions 1545*940*1980 mm, holding 624 blood bags of 450ml


    || High efficiency  ||  Energy - saving ||  Safe and reliable  ||  Smart control  ||

    Instruction to Blood Storage

    Storage temperature of whole blood :2ºC~6ºC.
    storage time of whole blood containing ACD-B and CPD was 21 days.The whole blood preservation solution containing CPDA-1(containing adenine) was preserved for 35 days.When using other blood preservation solutions, the storage period shall be carried out according to the instructions.



    Product Description

    With Multiple Temperature Control to Guarantee Constant and Precise Temperature
     The inside temperature is constant within 4±1°C, the digital temperature display resolution at 0.1°C.
     Equipped with 6 high-precision sensors and a mechanical thermostat which enables more accurate air cooling and temperature control to ensure uniform temperature inside the unit, maintained within the specified temperature range. The multi-layer inner door design reduces thermal loss after door openings and further ensures the temperature stability inside the cabinet.

    With Multiple Safety Guarantees to Provide Worry-Free Service

     Equipped with complete alarm function, including alarm on high and low temperature, power failure, door ajar, sensor error, and low battery. Two alarm modes including audible buzzer and visual lights with remote alarm interface.
     Back-up battery design ensures alarm and temperature readings continue to operate in the event of a main power failure.
     NFC swipe card module, with safer storage management.



    Standard USB Interface

    Ability to record temperature data for ten years by using the USB interface, an optional disc temperature recorder is also available.

    NFC rights management system
    NFC rights management system is designed with an electromagnetic lock with controllable, checkable and traceable flow direction, providing safer blood management.

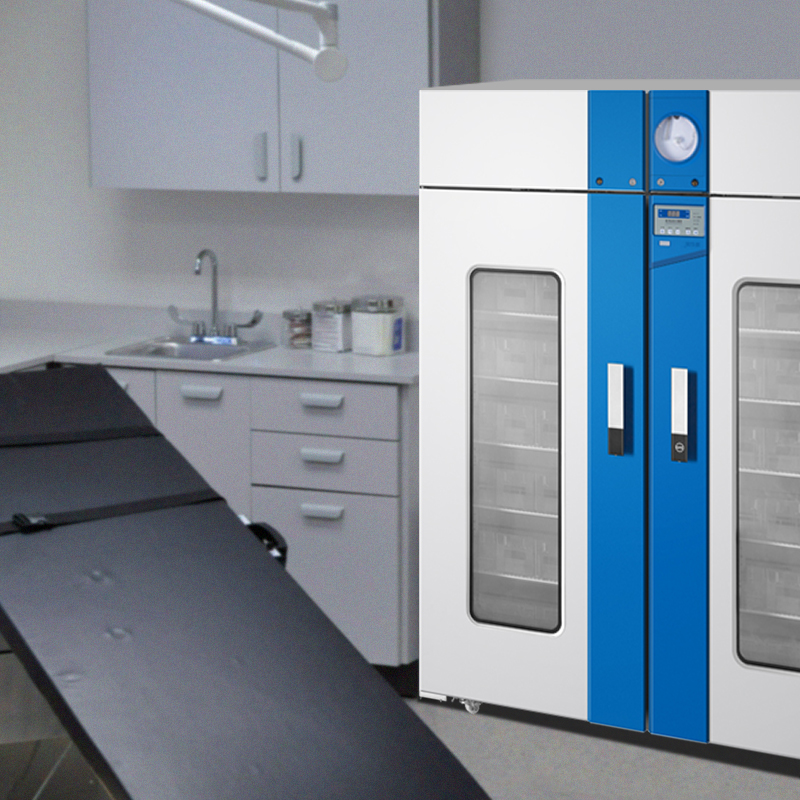

    blood plasma freezer factory
    haier medical blood bank refrigerator

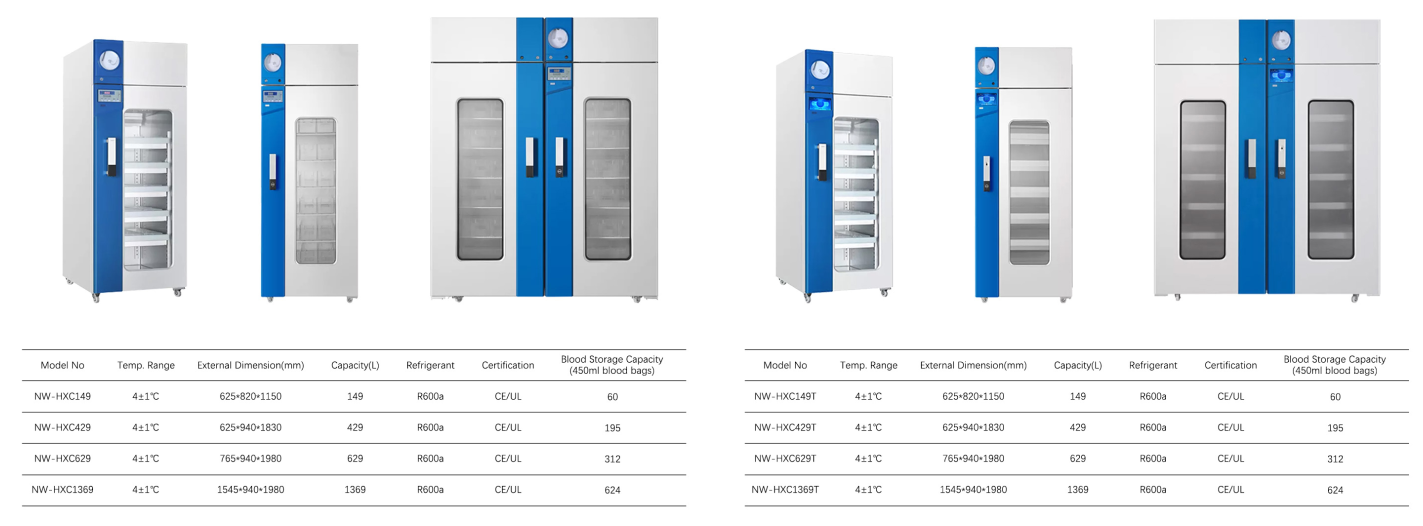

    Nenwell Blood Bank Refrigerator Series



    Model No Temp. Range External Capacity(L) Capacity
    (400ml blood bags)
    Refrigerant Certification Type
    Dimension(mm)
    NW-HYC106 4±1ºC 500*514*1055 106   R600a CE Upright
    NW-XC90W 4±1ºC 1080*565*856 90   R134a CE Chest
    NW-XC88L 4±1ºC 450*550*1505 88   R134a CE Upright
    NW-XC168L 4±1ºC 658*772*1283 168   R290 CE Upright
    NW-XC268L 4±1ºC 640*700*1856 268   R134a CE Upright
    NW-XC368L 4±1ºC 806*723*1870 368   R134a CE Upright
    NW-XC618L 4±1ºC 812*912*1978 618   R290 CE Upright
    NW-HXC158 4±1ºC 560*570*1530 158   HC CE Vehicle-mounted
    NW-HXC149 4±1ºC 625*820*1150 149 60 R600a CE/UL Upright
    NW-HXC429 4±1ºC 625*940*1830 429 195 R600a CE/UL Upright
    NW-HXC629 4±1ºC 765*940*1980 629 312 R600a CE/UL Upright
    NW-HXC1369 4±1ºC 1545*940*1980 1369 624 R600a CE/UL Upright
    NW-HXC149T 4±1ºC 625*820*1150 149 60 R600a CE/UL Upright
    NW-HXC429T 4±1ºC 625*940*1830 429 195 R600a CE/UL Upright
    NW-HXC629T 4±1ºC 765*940*1980 629 312 R600a CE/UL Upright
    NW-HXC1369T 4±1ºC 1545*940*1980 1369 624 R600a CE/UL Upright
    NW-HBC4L160 4±1ºC 600*620*1600 160 180 R134a   Upright

    blood bank refrigerator from haier medical
