-10~-25ºC Undercounter Small Ultra Low Lab Biomedical Freezer Fridge

Features:

  • Item No.: NW-DWYL90.
  • Storage capacity: 90 liter.
  • Temperature rage: -10~-25℃.
  • Undercounter single door style.
  • High-precision intelligent control system.
  • Warning alarm for errors and exceptions.
  • Solid door with excellent thermal insulation.
  • 3 storage sections with drawers.
  • Door lock and key are available.
  • High-definition digital temperature display.
  • Humanized operation design.
  • High-perfomance refrigeration.
  • High-efficiency R600a refrigerant.
  • Built-in USB interface for data storage.
  • Heavy-duty ABS shelvies.
  • LED Lighting is optional.


Detail

Specifications

Tags

NW-DWYL90 Undercounter Small Ultra Low Lab Biomedical Freezer Fridge Price For Sale | factory and manufacturers

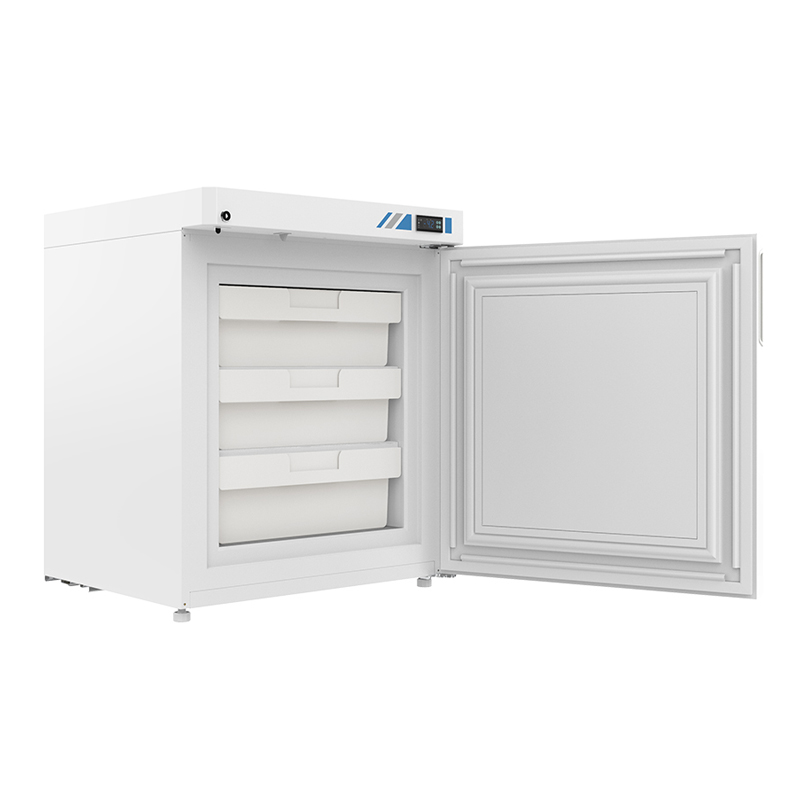

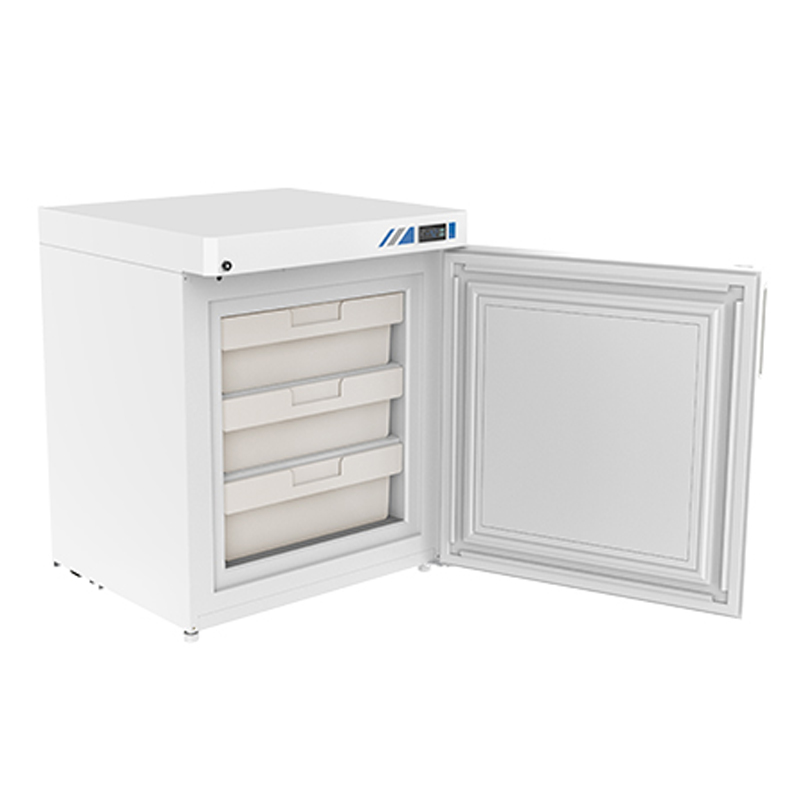

NW-DWYL90 is an undercounter type of ultra low lab biomedical freezer fridge that offers a storage capacity of 90 liters in a low-temperature range from -10℃ to -25℃, it’s a small medical freezer that is a perfect refrigeration solution for hospitals, pharmaceutical manufacturers, research laboratories to store their medicines, vaccines, specimens, and some special materials with temperature-sensitive. This small ultra low temperature freezer includes a premium compressor, which is compatible with high-efficiency R600a refrigerant and helps reduce energy consumption and improve refrigeration performance. The interior temperatures are controlled by an intelligent micro-processor, and it’s clearly displayed on a high-definition digital screen with an accuracy of 0.1℃, allows you to monitor and set the temperature to fit the proper storage condition. This small ultra low freezer has an audible and visible alarm system to warn you when storage condition is out of abnormal temperature, the sensor fails to work, and other errors and exceptions may occur, greatly protect your stored materials from spoilage. The front door is made of stainless steel plate with a polyurethane foam layer that features perfect thermal insulation.

Details

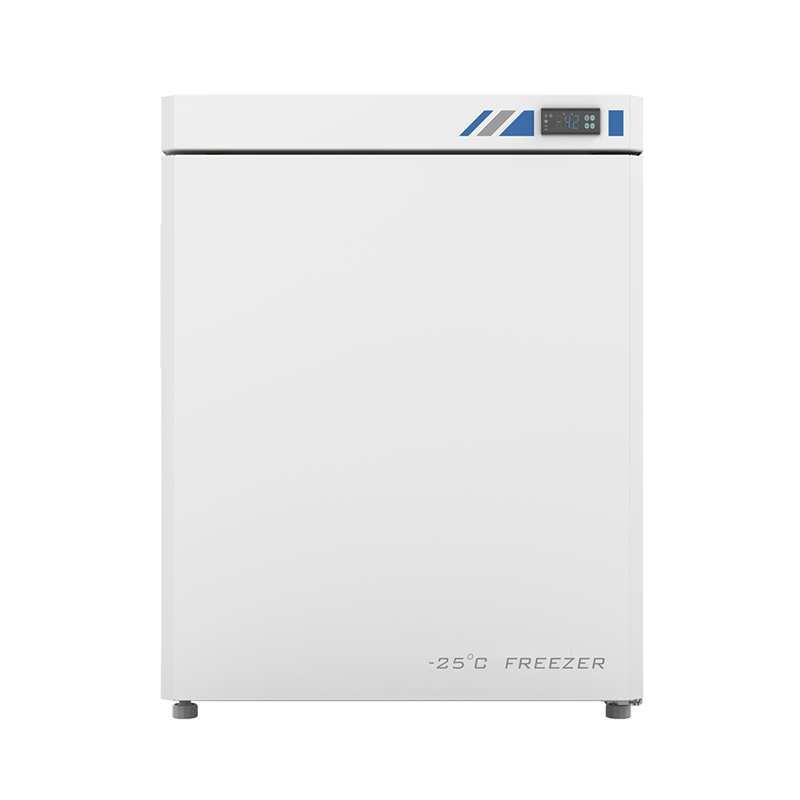

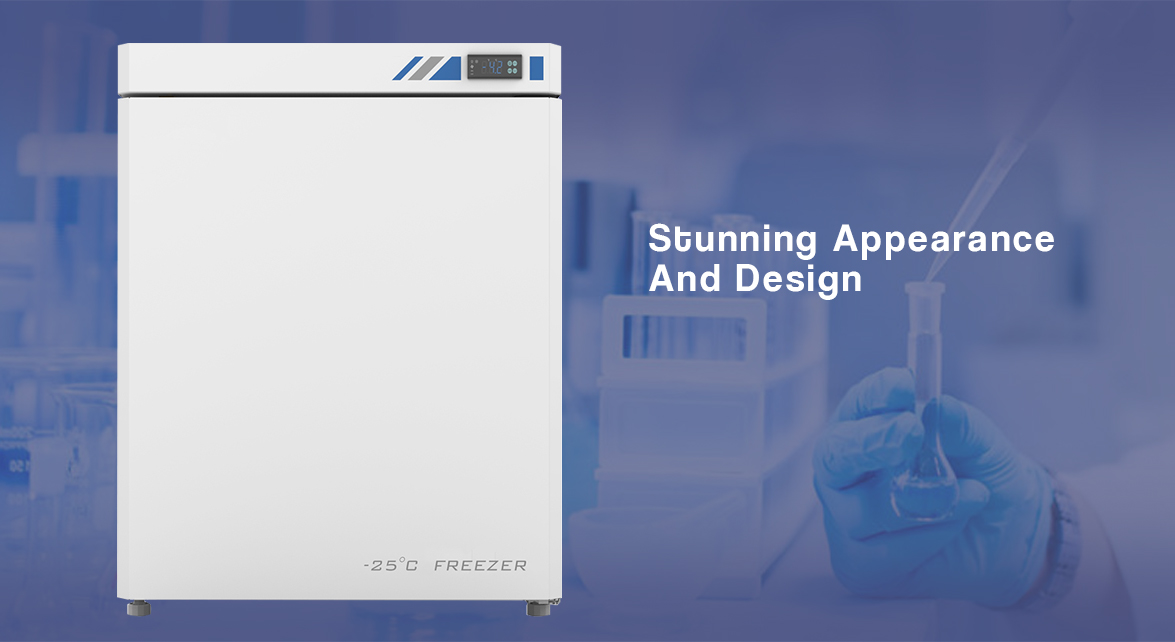

Stunning Appearance And Design | NW-DWYL90 Biomedical Fridge & Freezer

The external of this biomedical fridge is made of premium stainless steel finished with powder coating, the interior is made of aluminum plate. The front door has a recessed handle for preventing damage during transportation and movement.

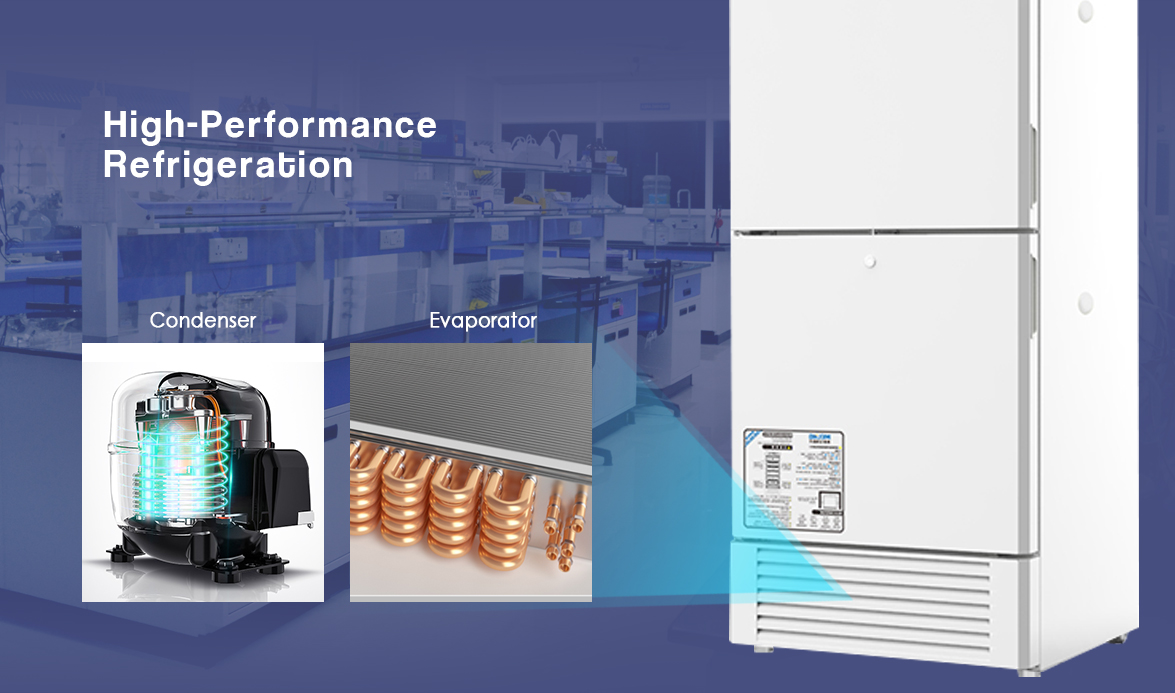

High-Performance Refrigeration | NW-DWYL90 Small Lab Freezer

This small lab freezer has a premium compressor and condenser, which have features of high-performance refrigeration and the temperatures are kept constant within a tolerance of 0.1℃. Its direct-cooling system has a manual-defrost feature. The R600a refrigerant is environmentally friendly to help improve working efficiency and reduce energy consumption.

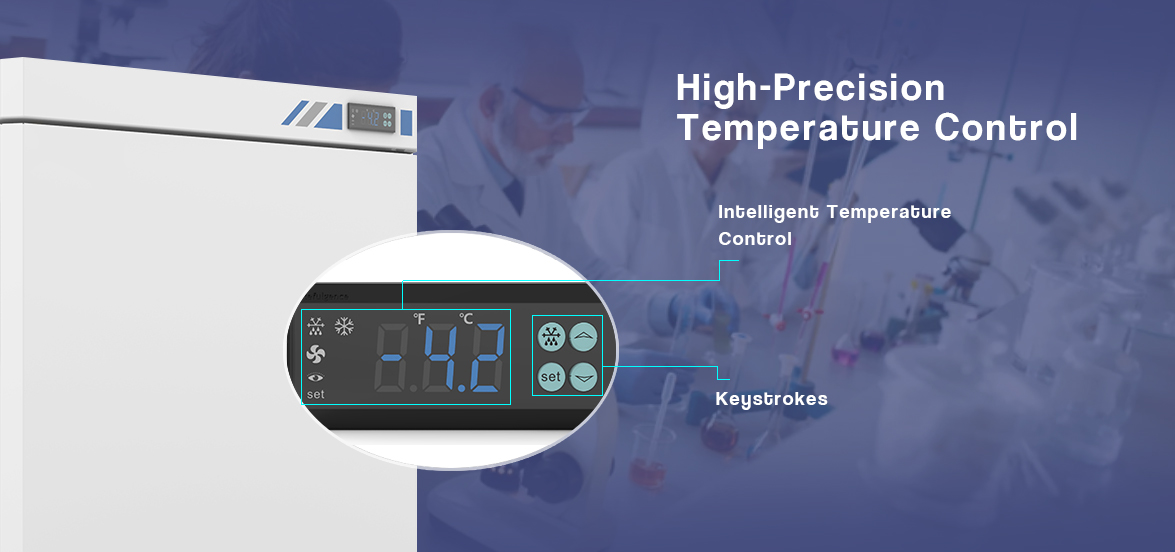

High-Precision Temperature Control | NW-DWYL90 Lab Fridge Freezer

The storage temperature of this undercounter lab fridge freezer is adjustable by a high-precision and user-friendly digital micro-processor, it’s a type of automatic temperature control module, the temp. the range is between -10℃~-25℃. A piece of digital screen that works with built-in and high-sensitive temperature sensors to display the interior temperature with a precision of 0.1℃.

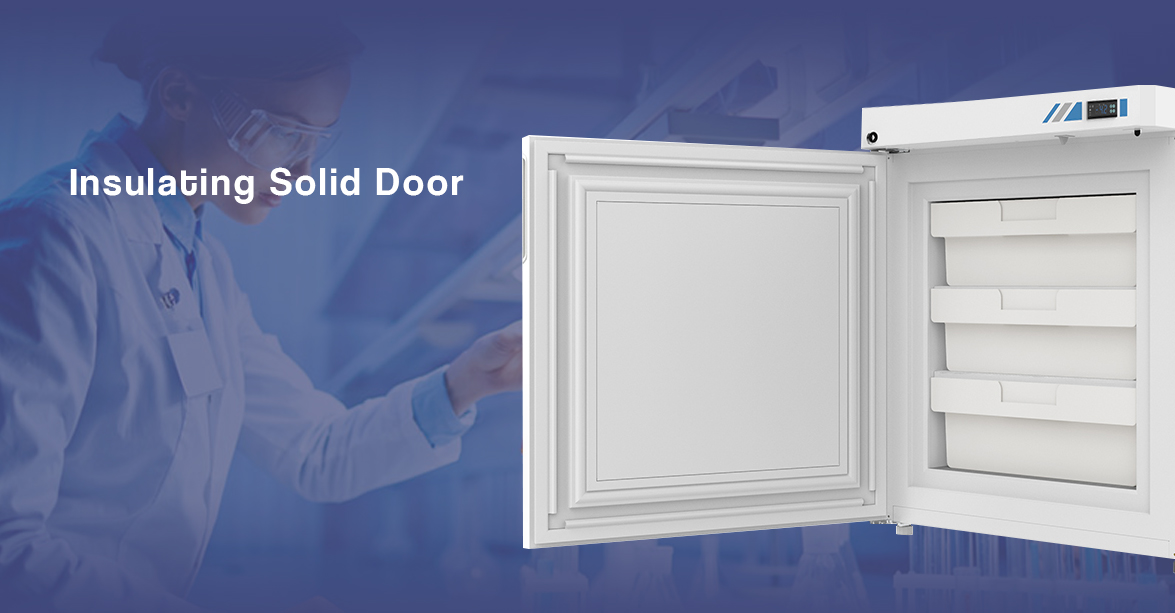

Insulating Solid Door | NW-DWYL90 Small Lab Fridge

The front door of this small lab fridge has a lock and a recessed handle, the solid door panel is made of stainless steel plate with polyurethane central layer, which features excellent thermal insulation.

Security & Alarm System | NW-DWYL90 Undercounter Lab Freezer

This undercounter lab freezer has an audible and visual alarm device, it works with a built-in sensor to detect the interior temperature. This system will alarm when the temperature goes high or low abnormally, the door has left open, the sensor doesn’t work, and the power is off, or other problems would occur. This system also comes with a device to delay turn-on and prevent interval, which can ensure working reliability. The door has a lock for preventing unwanted access.

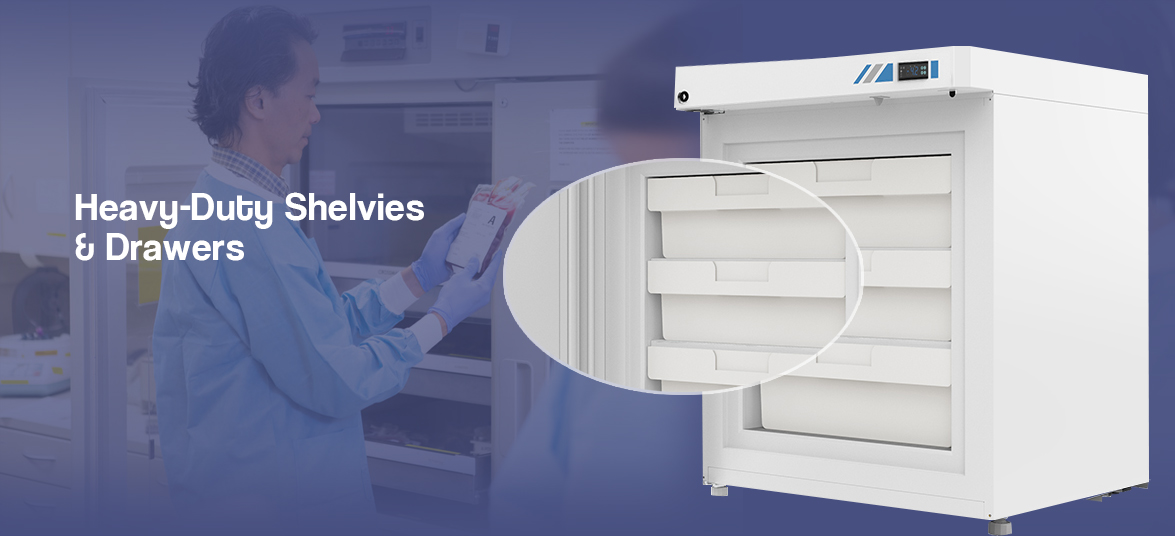

Heavy-Duty Shelvies & Drawers | NW-DWYL90 Small Ultra Low Freezer

Interior sections are separated by heavy-duty shelves, and each deck holds a drawer for classified storages and easy push-and-pull, it is made of durable ABS plastic material which is easy to operate and convenient to clean.

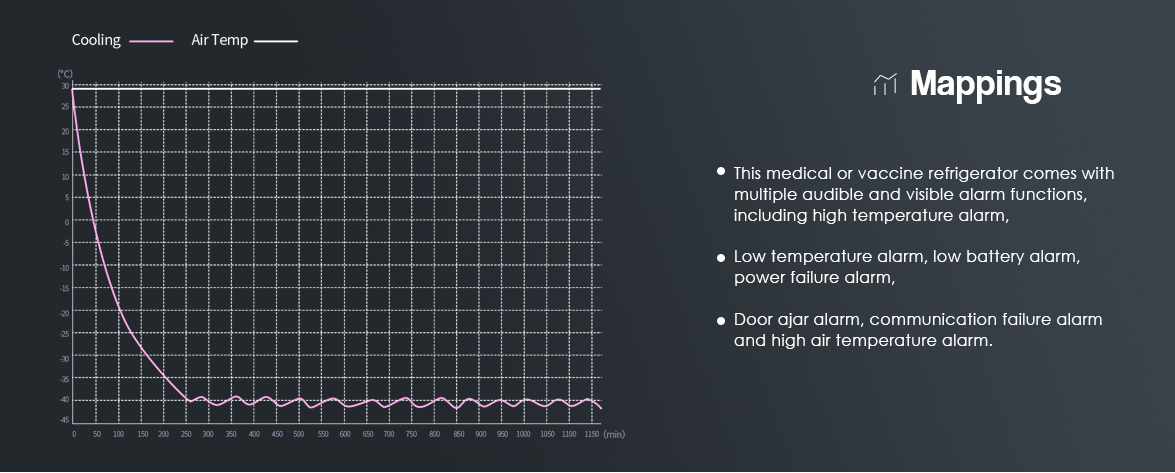

Mappings | NW-DWYL90 Biomedical Fridge

Dimensions

Dimensions | NW-DWYL90 Small Lab Freezer
Medical Refrigerator Security Soltuion | NW-DWYL90 lab fridge freezer

Applications

NW-DWYL90 Undercounter Small Ultra Low Lab Biomedical Freezer Fridge Price For Sale | factory and manufacturers

This undercounter lab freezer is used for the storage of blood plasma, reagents, specimens, and so on. It’s an excellent solution for blood banks, hospitals, research laboratories, disease prevention & control centers, epidemic stations, etc.


  • Previous:
  • Next:

  • Model NW-DWYL90
    Capacity(L 90 liter
    Internal Size(W*D*H)mm 500*485*532
    External Size(W*D*H)mm 700*669*854
    Package Size(W*D*H)mm 760*757*935
    NW/GW(Kgs) 54/59
    Performance
    Temperature Range -10~-25
    Ambient Temperature 16-32
    Cooling Performance -25
    Climate Class N
    Controller Microprocessor
    Display Digital display
    Refrigeration
    Compressor 1pc
    Cooling Method Direct cooling
    Defrost Mode Manual
    Refrigerant R600a
    Insulation Thickness(mm) 100
    Construction
    External Material Powder coated material
    Inner Material Aumlnum plate with spraying
    Shelves 3 (ABS)
    Door Lock with Key Yes
    External Lock Optional
    Access Port 1pc. Ø 25 mm
    Casters 2+(2 leveling feet)
    Alarm
    Temperature High/Low temperature
    System Sensor Error
    Construction Door ajar
    Electrical
    Power Supply(V/HZ) 220/50
    Rated Power(W) 75
    Input Power(W) 150
    Power Consumption(KWh/24h) 0.58
    Rated Current(A) 0.68
